Φ 42 mm inrunner bldc motor with driver

BL4260I BL4260 B4260M 42mm inner rotor small bldc Brushless DC Motor

Item No.: BL4260I BL4260 B4260M
| - Shell Stator Size : Φ42* L 60 mm;
| - Rated Output Power: 5W - 75W;
| - Rated Voltage: DC 6V - 24V;
| - Rated Torque: up to 800 gf-cm;
| - Shaft : Φ5.0mm, length custom;
| - Driver: built-in driver with 3 hall sensors
| - MOQ: 500 pcs.
  • motor case diameter: 42 mm
  • motor case length: 60 mm
  • motor case shape: round motor shell
  • brush type: brushless
  • motor type: single bldc motor
  • bearing type: bushing/ball bearing
  • manufacturer: FONEACC MOTOR
  • Description
    BL4260 B4260M 42mm inner rotor small bldc Brushless DC Motor
    Specifications:

    Size: φ42.0* 60.0mm
    Built-in driver
    PWM pulse wide speed range
    Clockwise/counter-clockwise rotation
    FG speed feedback signal
    Low EMC
    Low noise
    Long life: 20000hrs Min.
    Over-current protection
    Over-voltage protection
    Under-voltage protection
    OEM and ODM orders are welcome
    The design can be customized

    Applications:
    Personal care, home application, industry apparatus, business equipment and medical apparatus

    Samples can be sent on your request.

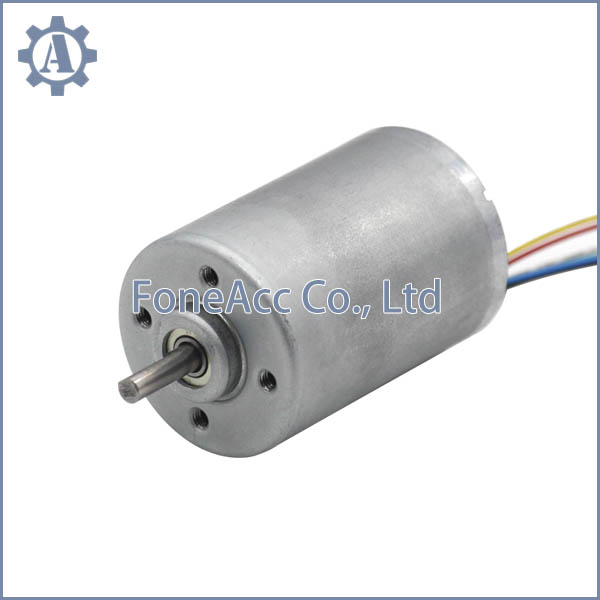

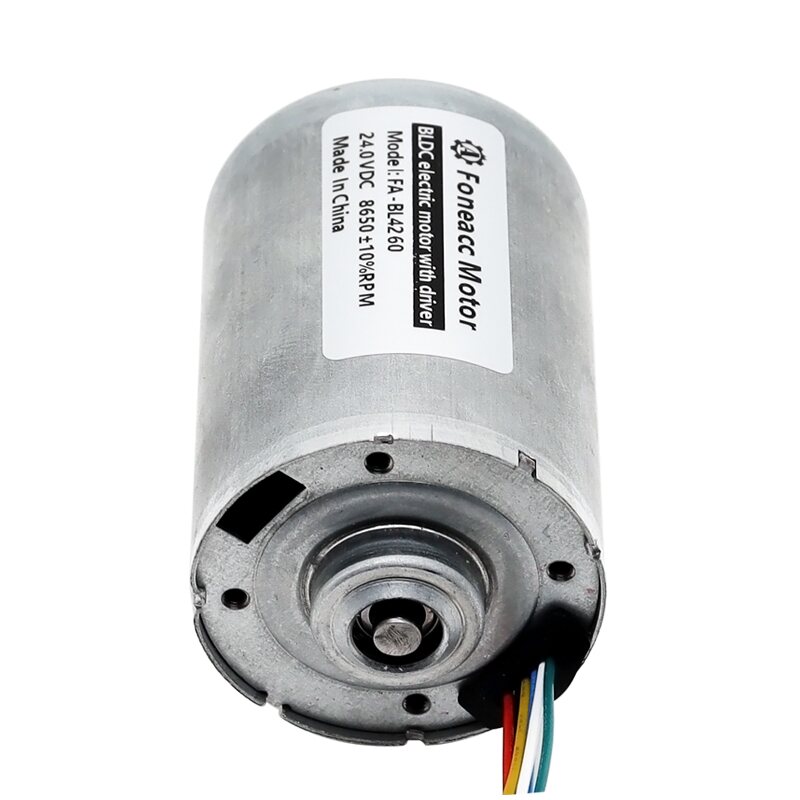

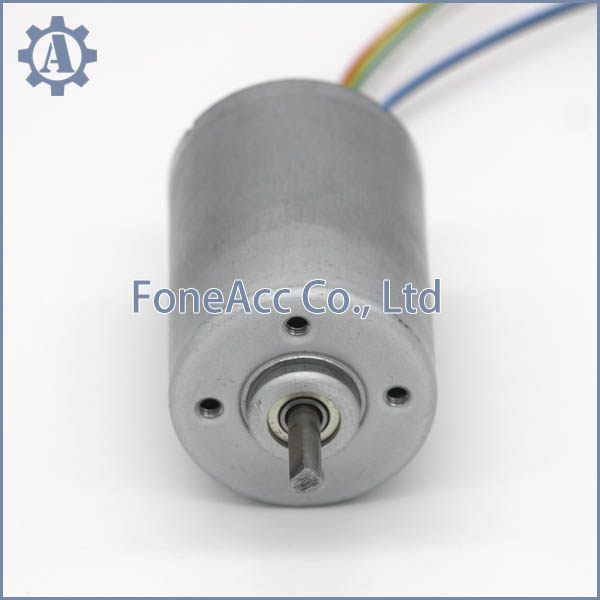

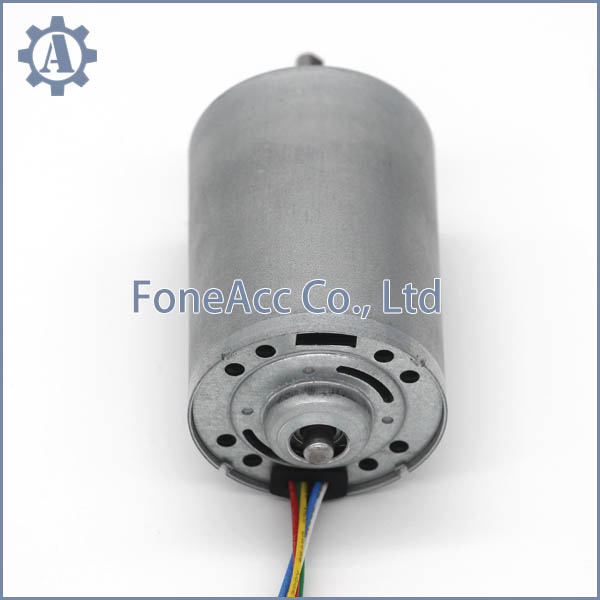

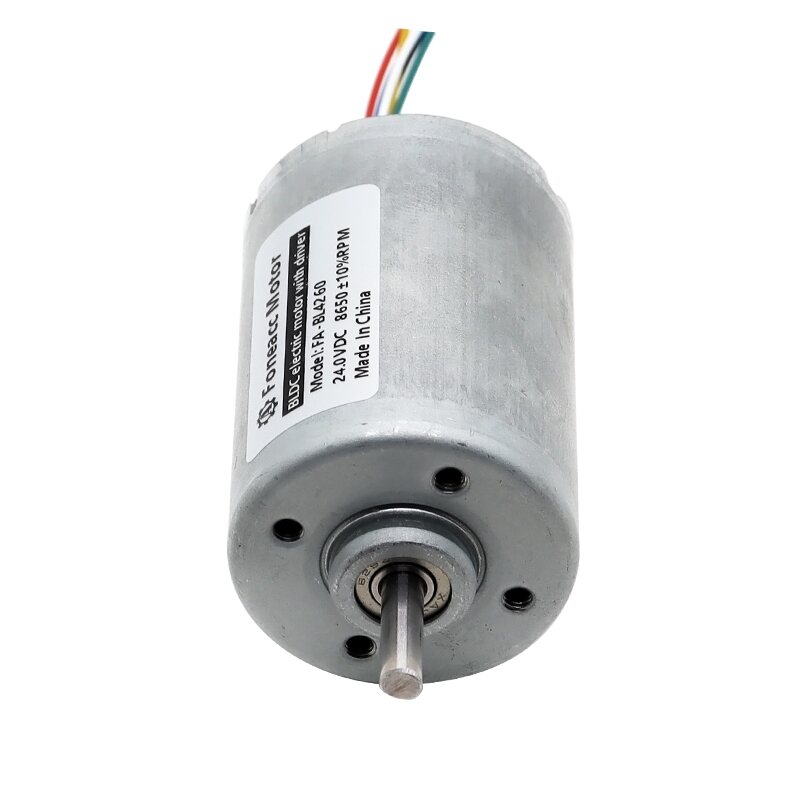

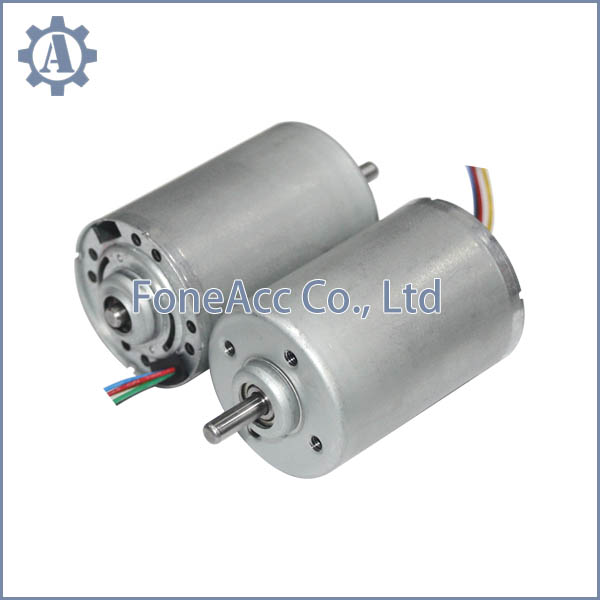

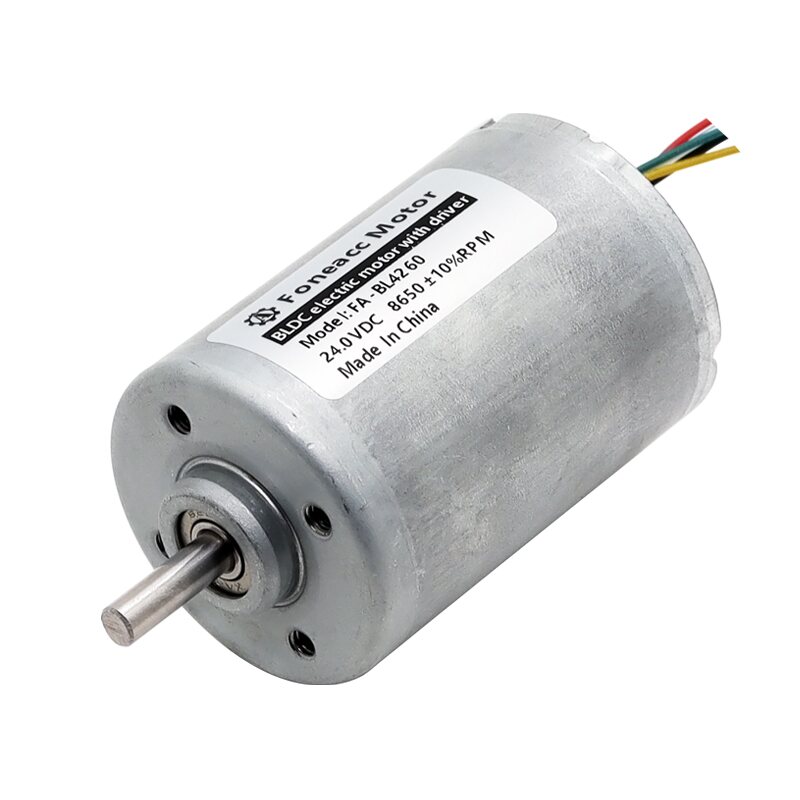

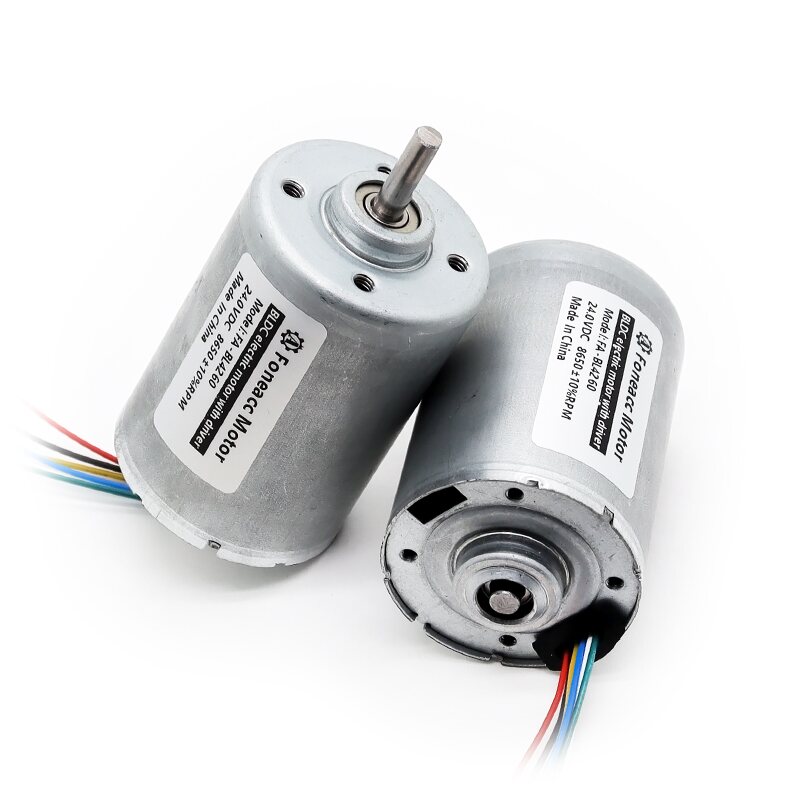

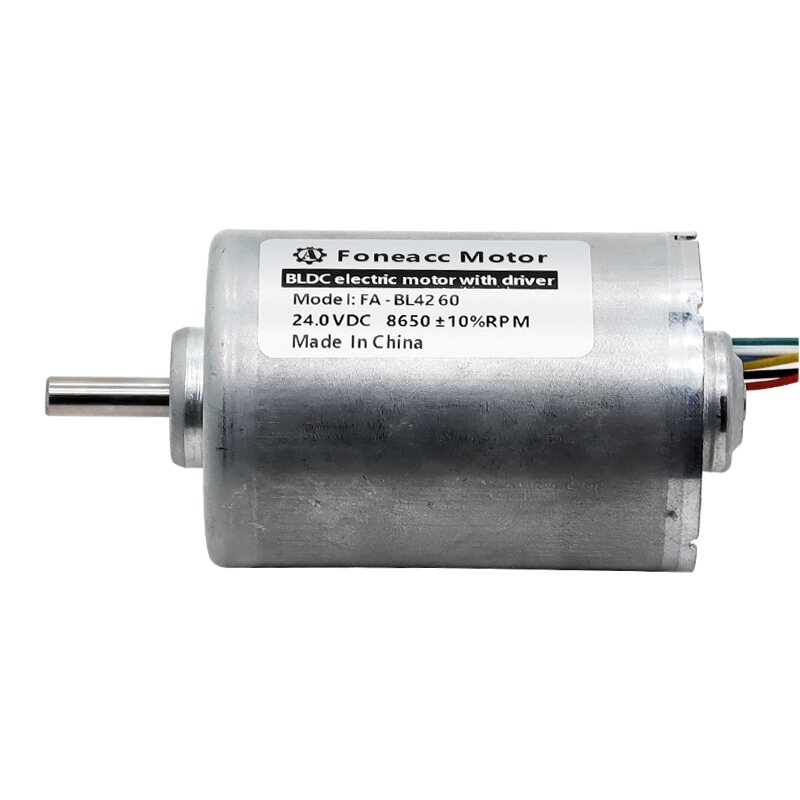

    Images of BL4260 bldc motor:

    BL4260 Output Power: 10W~40W Weight: 290g (Approx.)

    Brushless DC Motor-Typical Application

    Home Application: White Goods, Small Appliance, Fanner, Coffee Machine, Meat  Grinder

    Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer, centrifugal  Machine

    Power Tools: Screwdriver, Drill, Air Compressor

    Business Equipment: Printer, Copier, Projector, ATM, Vending Machine

    Personal Care: Hair Dryer, Massager, Vibrator

    Model Voltage(V) No Load Rated Load Stall
    Operating Range Rated Speed (rpm) Current (A) Torque (mNm) Speed (rpm) Current (A) Output P. (W) Torque (mNm) Current (A)
    BL4260M-S01 8~26 12 4590 0.28 45 3500 1.88 16.54 190.2 3
    BL4260M-S02 8~26 24 4260 0.26 95.06 3270 1.85 32.58 409.2 3
    BL4260M-S03 8~26 24 4046 0.24 60.04 3342 1.21 21.01 344.6 2.5
    BL4260M-S04 85-265 ac 120 ac 9700 0.19 19.816 7930 0.368 16.45 96.5 1
    BL4260M-S05 85-265 ac 220 ac 10760 0.12 24.525 8500 0.247 21.85 116.8 1



    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-50000hrs


    Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

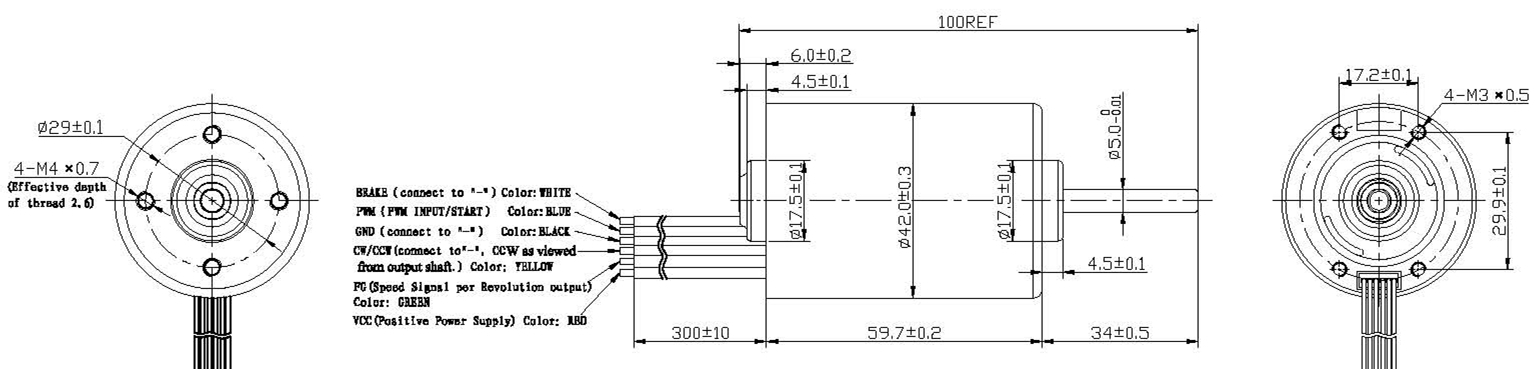

    Outline Drawing:  Usable machine screw length 6.0mm max. from motor mounting surface     Unit: Millimeter
    bl4260 dimension.jpg



    Performance Curve:

    BL4260-S01                      12V BL4260-S02                         24V


    6 wires built-in driver interface instruction.webp
