GA12-N20-EN, FAGA12-N20-EN, mini geared N20 DC electric motor with magnetic encoder
- Rated Voltage: DC 1.5V - 24V
- Rated Torque: Max. 2Kgf-cm
- Size : Φ12* L TBD
- Shaft : Φ3mm D-cut 0.5mm /M3/M4/custom
- Encoder: Magnetic encoder
- MOQ: 500 pcs
- Commutation: Metal / Carbon brush
GA12-N20-EN 12mm N20 dc motor geared micromotor with magnetic encoder

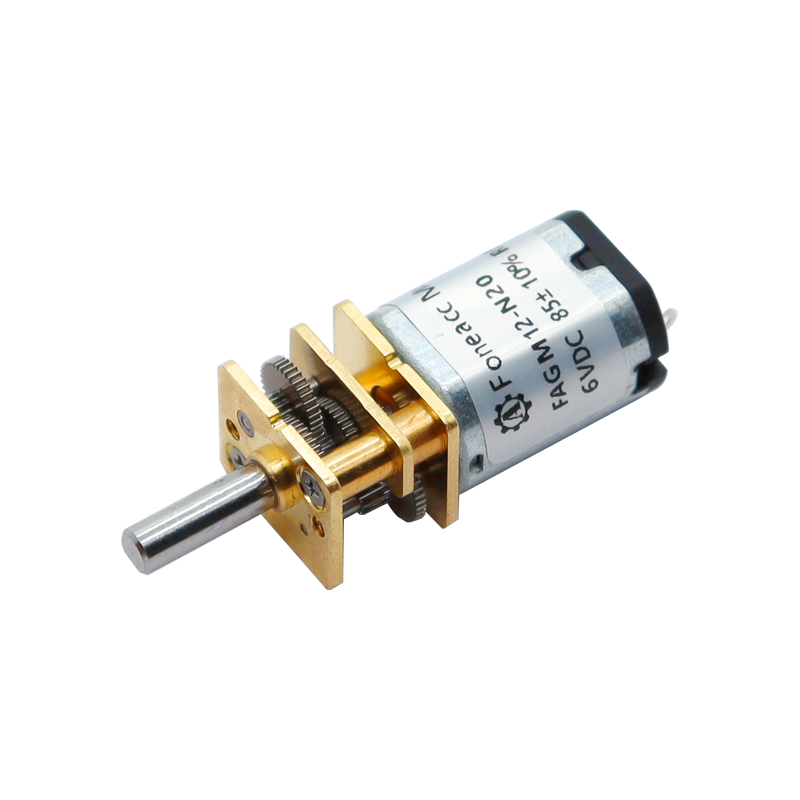

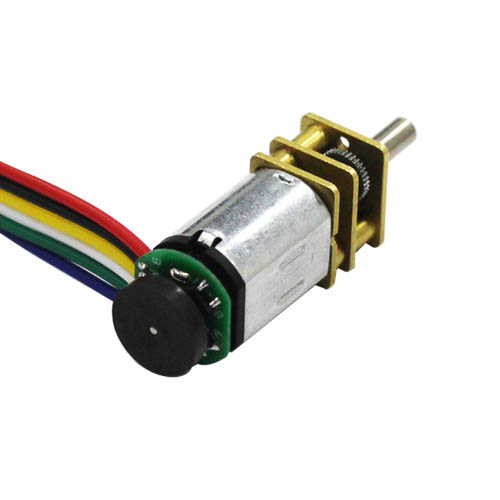

Micro dc motor FF-N20VA N20 dc motor assembled with 12mm metal spur gearbox, gm12-n20 gear motor with magnetic encoder.
1.Availabe voltages: 1.5V,2.5V,3V,6V,9V,12V,18V,24VDC [Any voltages between 1.5VDC and 24VDC].
2.Typical applications: Automatic door-lock,projector,hairdressing equipment, robotics, hobby toy, RC car toy, share bike lock, smart lock, intelligent apparatus, etc.
3. Square gearbox size: 12.0*10.0*9.0mm[0.473*0.394*0.355 in], (12.0*10.0*12.0mm[0.473*0.394*0.473 in] for the 1000:1 ratio) metal spur gearbox, total N20 gear motor [N20 dc motor with gearhead assembly] size: 24.0*10.0*12.0mm[0.945*0.394*0.473 in] ( 27.0*10.0*12.0mm[1.063*0.394*0.473 in] for the 1:1000 ratio).
4. Torque:300gf.cm~3000gf.cm.
5. Direction:CW,CCW (reversible).
6.Voltage,speed,and shaft can be customized (charge free).
7. Encoder specs: 3ppr.
Gearbox Data:
|
Number of stages |
2 |
4 |
5 |
7 |
|
Reduction ratio |
3,5,10 |
17,20,30,36 50,63,75,100 |
110,150,210 250,298,380 |
372,625,1000 |
|
Gearbox length “L”mm |
9 |
9 |
9 |
12 |
|
Breaking torque(kgf.cm) |
0.6 |
0.9 |
1.2 |
2 |
|
Gearbox efficiency |
81% |
65% |
59% |
48% |

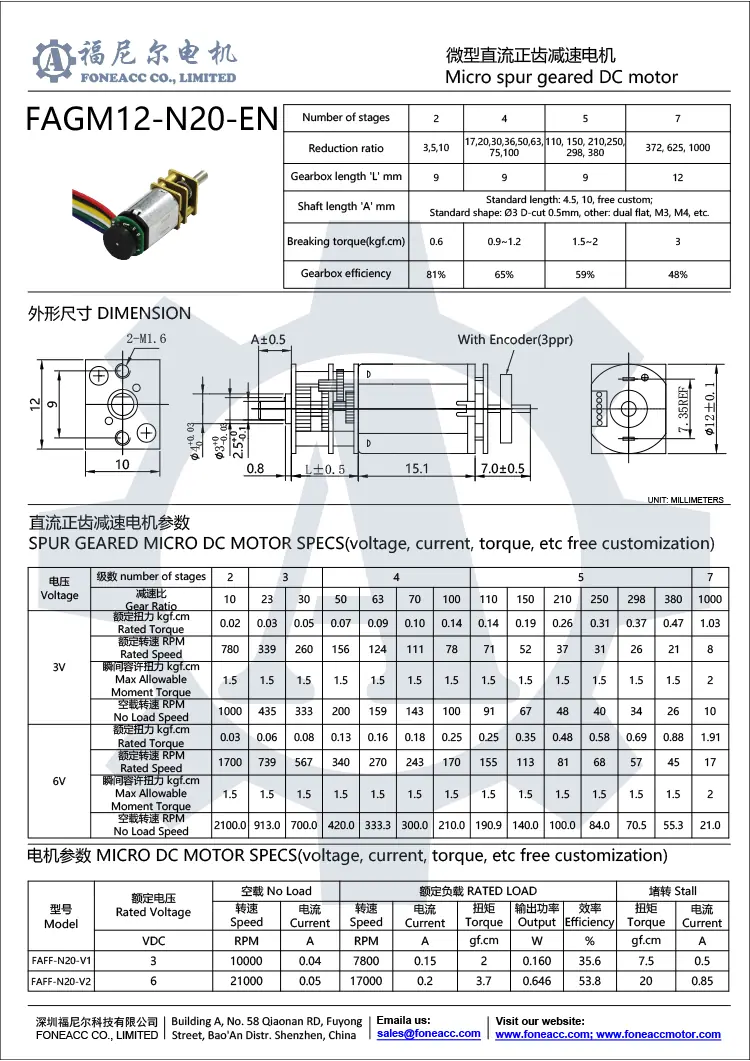

The Φ12 mm spur geared dc electric motor with gearbox data（For reference only, not corresponding data）:
| Gear Motor Model | Rated voltage | No Load | Max Efficiency Load | Stall | |||||
| Current | Speed | Current | Speed | Torque | P.out | Torque | Current | ||
| V | A | r/min | A | r/min | kgf.cm | W | kgf.cm | A | |
| GA12-N20-EN-S01 | 3 | 0.07 | 110.7 | 0.27 | 87.3 | 0.28 | 0.25 | 1.30 | 1.01 |
| GA12-N20-EN-S02 | 3 | 0.03 | 10.7 | 0.15 | 7.30 | 1.20 | 0.10 | 3.90 | 0.33 |
| GA12-N20-EN-S03 | 5 | 0.04 | 135.5 | 0.13 | 104.1 | 0.17 | 0.19 | 0.75 | 0.44 |
| GA12-N20-EN-S04 | 5 | 0.04 | 61.5 | 0.15 | 47.3 | 0.50 | 0.24 | 2.00 | 0.53 |
| GA12-N20-EN-S05 | 5 | 0.03 | 48.8 | 0.12 | 38.6 | 0.50 | 0.20 | 2.40 | 0.46 |
The Φ12 mm single small dc electric motor without gearbox data（For reference only, not corresponding data）:
|
Motor model |
Rated Volt. |
No load |
At Max Eff Load |
Stall |
|||||
|
Current |
Speed |
Current |
Speed |
Torque |
Output power |
Torque |
Current |
||
|
V |
mA |
r/min |
mA |
r/min |
gf.cm |
W |
gf.cm |
mA |
|
|
FAFF-N20VA-S01 |
3 |
≤50 |
10000 |
≤185 |
8000 |
2 |
0.2 |
≥8 |
≥350 |
|
FAFF-N20VA-S02 |
3 |
≤80 |
15000 |
≤280 |
12400 |
3 |
0.4 |
≥12 |
≥520 |
|
FAFF-N20VA-S03 |
3 |
≤110 |
20000 |
≤370 |
15500 |
4 |
0.6 |
≥16 |
≥700 |
|
FAFF-N20VA-S04 |
6 |
≤25 |
10000 |
≤95 |
8000 |
2 |
0.2 |
≥8 |
≥160 |
|
FAFF-N20VA-S05 |
6 |
≤40 |
15000 |
≤145 |
12400 |
3 |
0.4 |
≥12 |
≥250 |
|
FAFF-N20VA-S06 |
6 |
≤60 |
20000 |
≤190 |
15500 |
4 |
0.6 |
≥16 |
≥320 |
Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;
Gear Motor Speed=Driving motor speed/Reduction ratio;
Motor detailed config can be customized according to customer's requests, such as voltage, speed, as well as shaft length and shape...
Welcome OEM or ODM projects
--------------

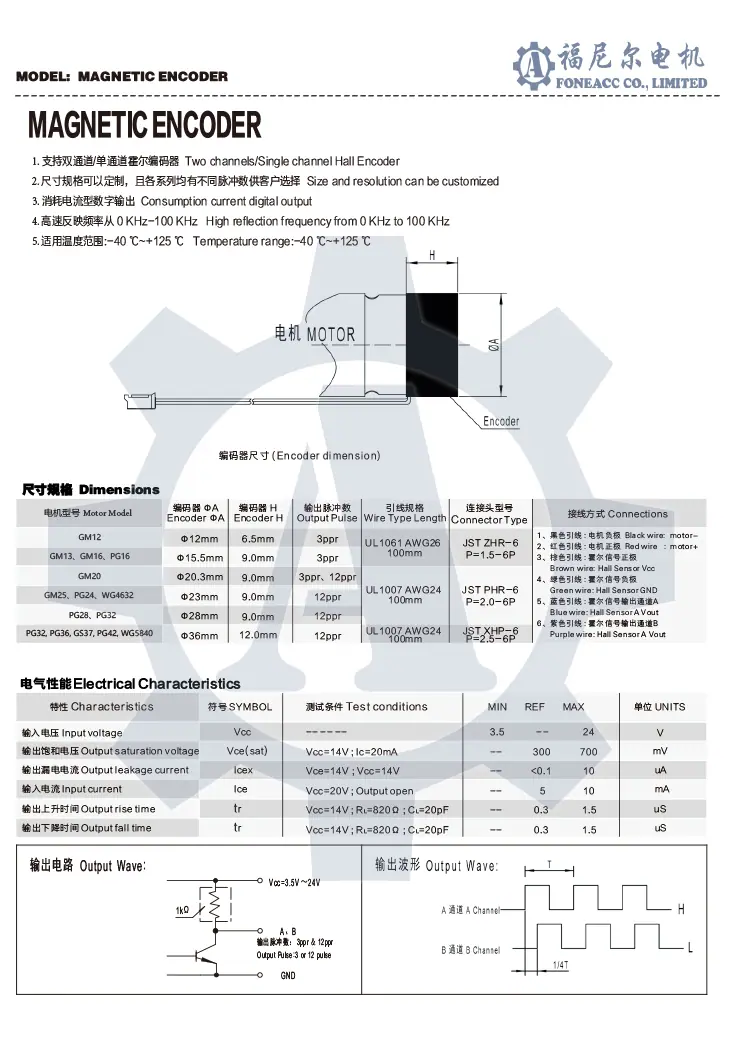

Magnetic encoder specs:

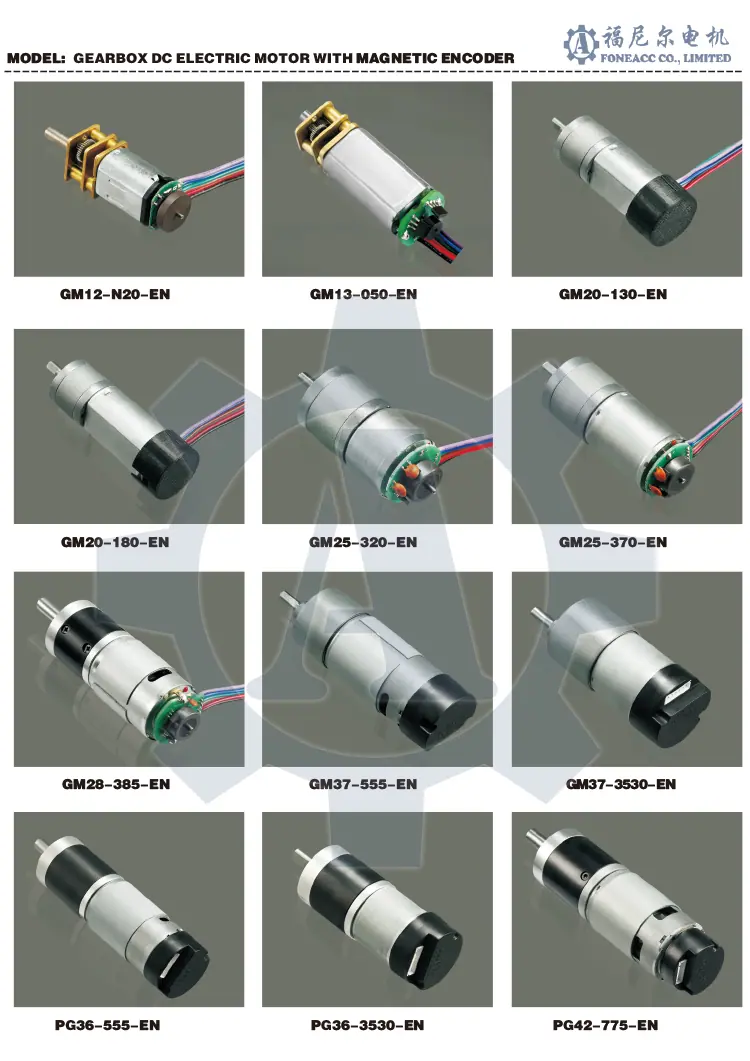

Some examples of small gear motors with magnetic encoder, all of our brush dc gear motors are compatible with encoders.

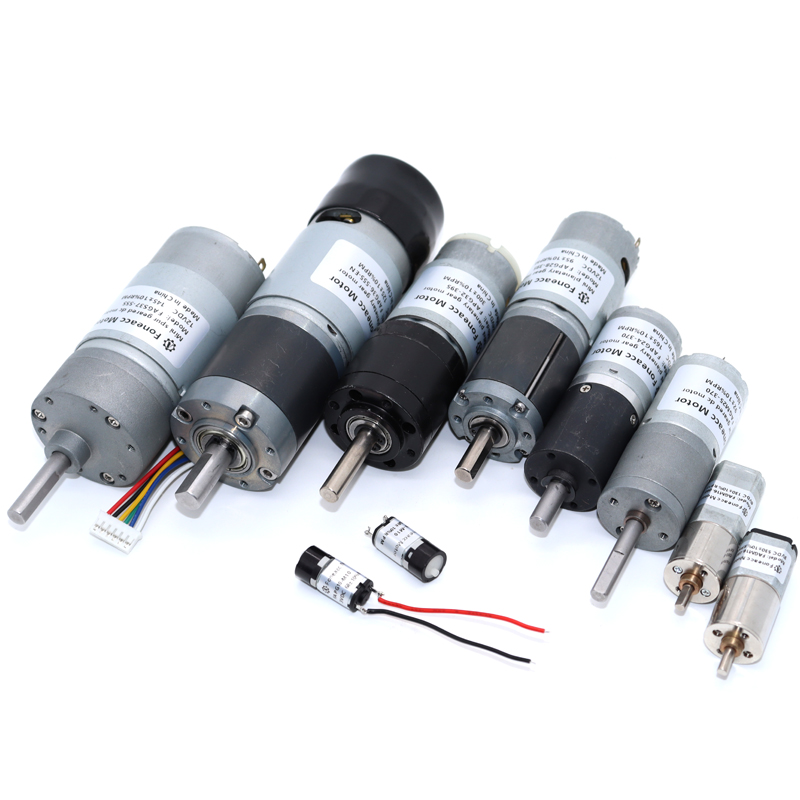

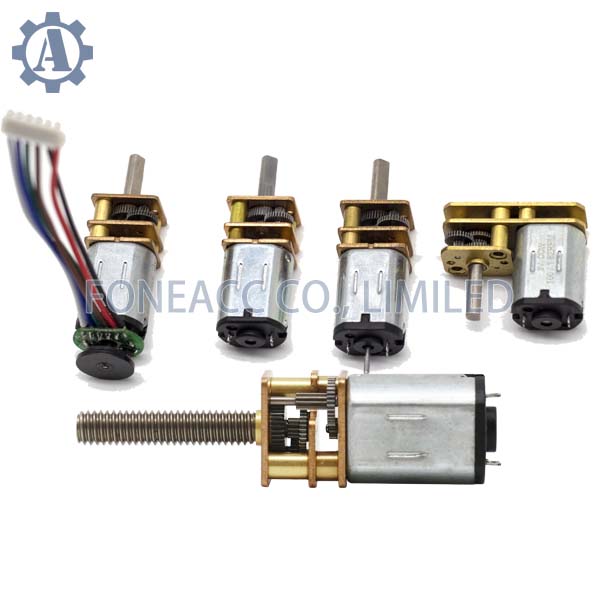

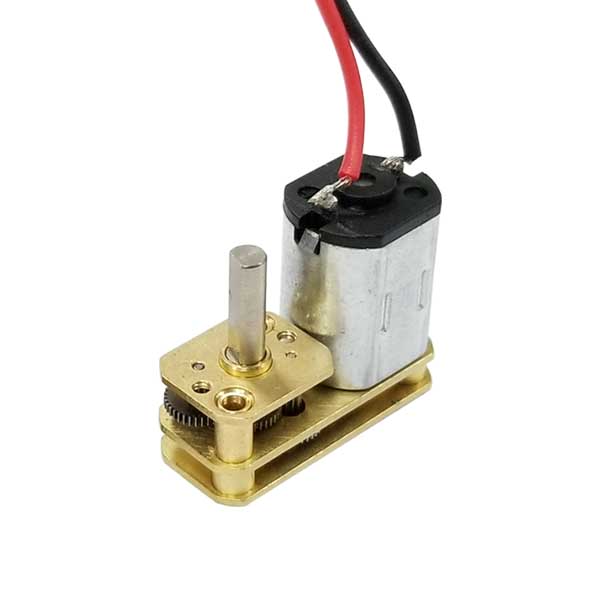

The whole small spur gear dc electric motor family is as below:
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Small spur gear dc motor applications |
Sweeping robot, CCTV camera, electric lock, electrical curtain, printer, atm, copiers and scanners, vending machines, hand blenders, mixers, coffee machines, fryers, projectors, grinders, polishers, trimmers, amusement machine, financial machine, peristaltic pump, medical apparatus and instruments, automotive, communications equipment, smart home, intelligent security, household appliances, electric kitchen equipment, machinery and electronics, and other high-end transmission structures
