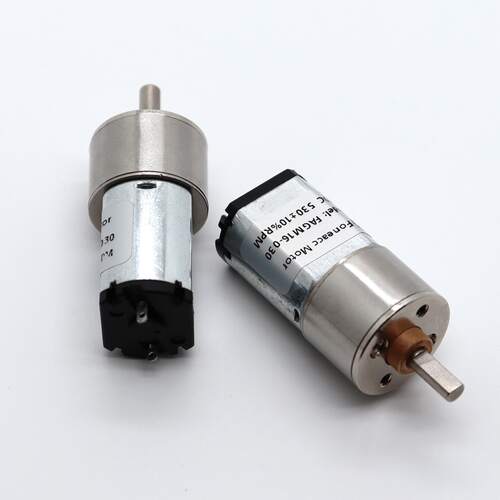

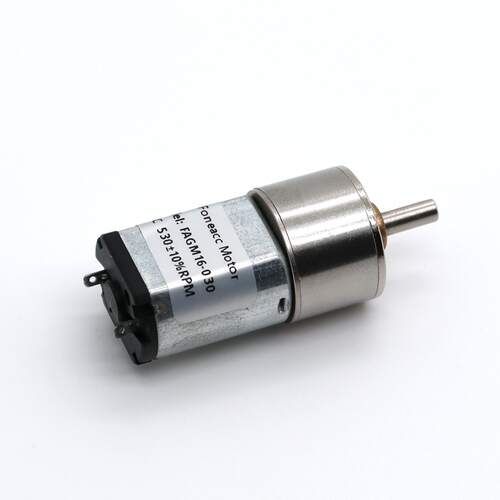

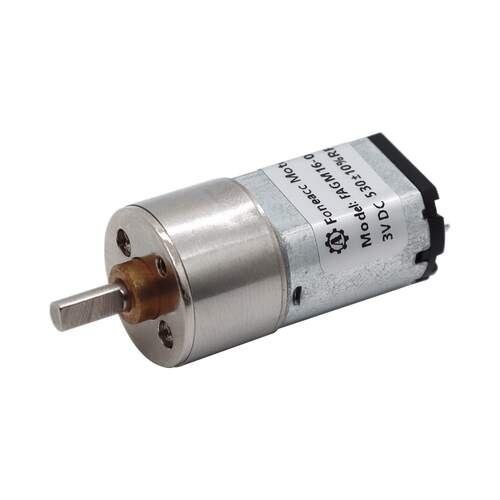

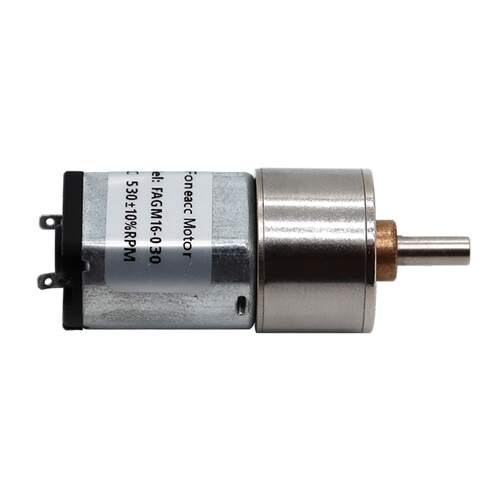

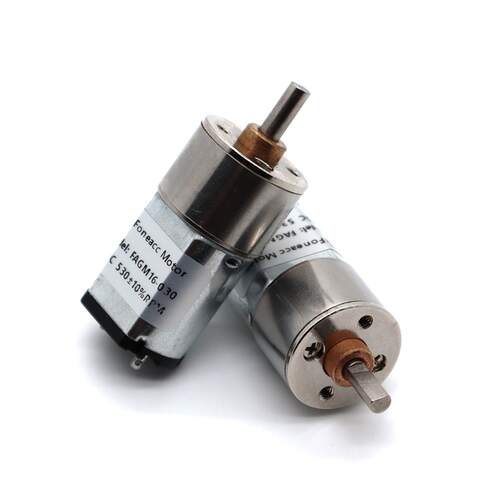

Φ 16 mm compact spur gear motor

FAGM16-030 16 mm small spur gearhead dc electric motor

Item No.: FAGM16-030
- Rated Voltage: DC 1.5V,3V,6V,9V,12V
- Rated Torque: Max. 2.5Kgf-cm
- Size : Φ16* L TBD
- Shaft : Φ3mm D-cut 0.5mm,M3, M4,custom
- Encoder: Magnetic encoder available
- MOQ: 500 pcs
  • motor case diameter: 16 mm
  • motor case shape: l
  • brush type: carbon brush/metal brush
  • motor type: miniature gearbox permanent magnet dc electric motor
  • gearbox type: metal spur gear reducer
  • driveshaft shape: D, O, knurling, screw thread, Customization
  • bearing type: bushing/ball bearing
  • manufacturer: FONEACC MOTOR
  • Description

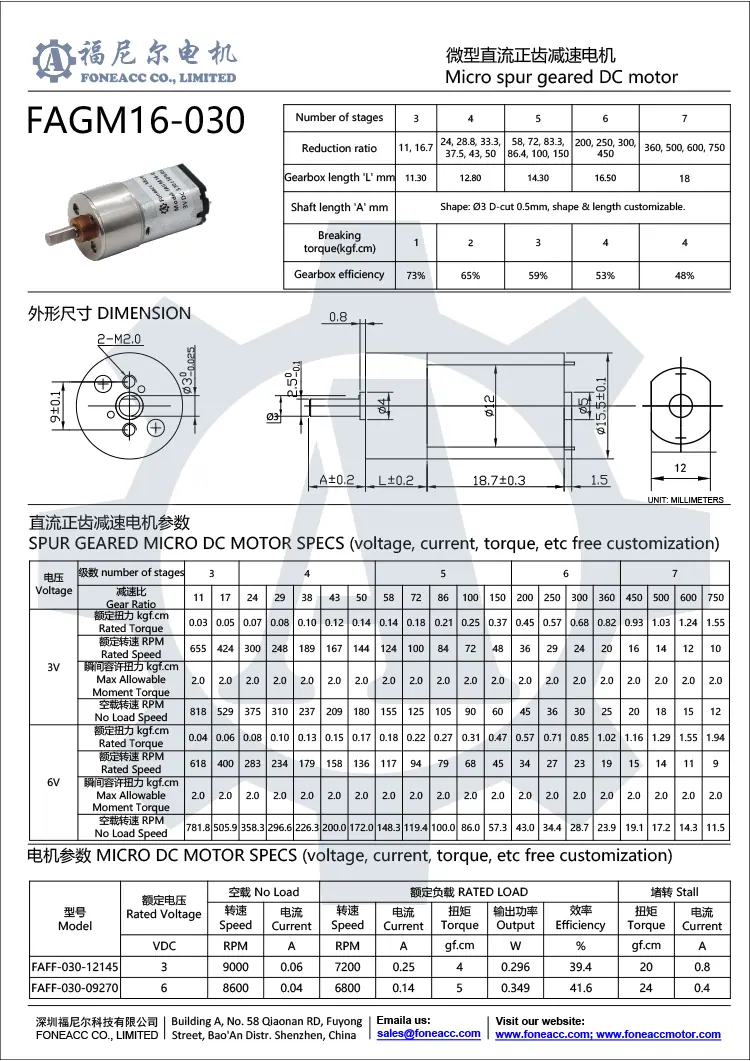

    The datasheet of GM16-030 is as below:

    gm16-030 16 mm small spur gearhead dc electric motor.webp

    Notice: Data in this typical specification sheet are for certain customers. The power voltage, rated torque, speed, current, power, and driveshaft extension can be customized to meet customer-specific requirements.



    Tables for clear view:

    data table of gm16-030 spur gearhead dc electric motor
    Voltage number of stages 3 4 5 6 7
    Gear Ratio 11 17 24 29 38 43 50 58 72 86 100 150 200 250 300 360 450 500 600 750
    3V kgf.cm
    Rated Torque
    0.03 0.05 0.07 0.08 0.10 0.12 0.14 0.14 0.18 0.21 0.25 0.37 0.45 0.57 0.68 0.82 0.93 1.03 1.24 1.55
    RPM
    Rated Speed
    655 424 300 248 189 167 144 124 100 84 72 48 36 29 24 20 16 14 12 10
    kgf.cm
    Max Allowable
    Moment Torque
    2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0
    RPM
    No Load Speed
    818 529 375 310 237 209 180 155 125 105 90 60 45 36 30 25 20 18 15 12
    6V kgf.cm
    Rated Torque
    0.04 0.06 0.08 0.10 0.13 0.15 0.17 0.18 0.22 0.27 0.31 0.47 0.57 0.71 0.85 1.02 1.16 1.29 1.55 1.94
    RPM
    Rated Speed
    618 400 283 234 179 158 136 117 94 79 68 45 34 27 23 19 15 14 11 9
    kgf.cm
    Max Allowable
    Moment Torque
    2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0
    RPM
    No Load Speed
    781.8 505.9 358.3 296.6 226.3 200.0 172.0 148.3 119.4 100.0 86.0 57.3 43.0 34.4 28.7 23.9 19.1 17.2 14.3 11.5

    single motor FF-030 dc electric motor specs
    Model Rated Voltage No Load RATED LOAD Stall
    Speed Current Speed Current Torque Output Efficiency Torque Current
    VDC RPM A RPM A gf.cm W % gf.cm A
    FF-030-12145 3 9000 0.06 7200 0.25 4 0.296 39.4 20 0.8
    FF-030-09270 6 8600 0.04 6800 0.14 5 0.349 41.6 24 0.4

    The whole small spur gear dc electric motor family is as below:

    OD Φ10 mm small spur gear dc electric motor:
    GM10-M10 small spur geared dc electric motor.webp GM10-M20 small dc electric motor gear reducer mounted.webp
    OD Φ12 mm small spur gear dc electric motor:
    GM12-N20 small spur geared dc electric motor.webp GM12-N20-EN small spur geared dc electric motor.webp GM12-N30 small spur geared dc electric motor.webp
    OD Φ13 mm small spur gear dc electric motor:
    GM13-030 small spur geared dc electric motor.jpg GM13-050 small spur geared dc electric motor.webp
    OD Φ16 mm small spur gear dc electric motor:
    GM16-030 small spur geared dc electric motor.webp GM16-050 small spur geared dc electric motor.webp
    OD Φ20 mm small spur gear dc electric motor:
    GM20-130 small spur geared dc electric motor.webp GM20-180 small spur geared dc electric motor.webp
    OD Φ24 mm small spur gear dc electric motor:
    GMR24-N20 small spur geared dc electric motor.webp
    OD Φ25 mm small spur gear dc electric motor:
    GM25-370 small spur geared dc electric motor.webp GM25-2430 small spur geared dc electric motor.webp
    OD Φ37 mm small spur gear dc electric motor:
    GS37-520 small spur geared dc electric motor.webp GS37-528 small spur geared dc electric motor.webp GS37-555 small spur geared dc electric motor.webp



    Small spur gear dc motor applications

    Sweeping robot, CCTV camera, electric lock, electrical curtain, printer, atm, copiers and scanners, vending machines, hand blenders, mixers, coffee machines, fryers, projectors, grinders, polishers, trimmers, amusement machine, financial machine, peristaltic pump, medical apparatus and instruments, automotive, communications equipment, smart home, intelligent security, household appliances, electric kitchen equipment, machinery and electronics, and other high-end transmission structures
