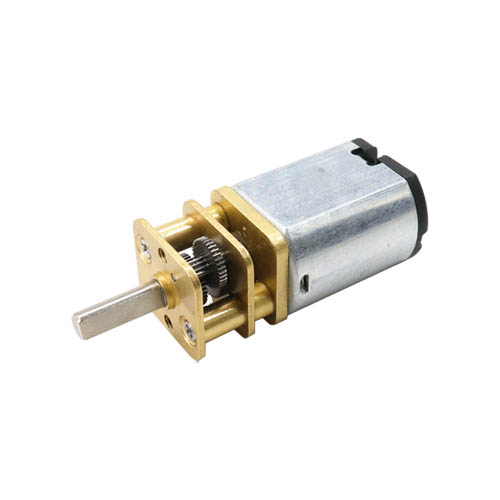

FAGM13-030 13 mm small spur gearhead dc electric motor
- Rated Torque: Max. 2.0Kgf-cm
- Size : Φ13* L TBD
- Shaft : Φ3mm D-cut 0.5mm,M3, M4,custom
- Encoder: Magnetic encoder available
- MOQ: 500 pcs

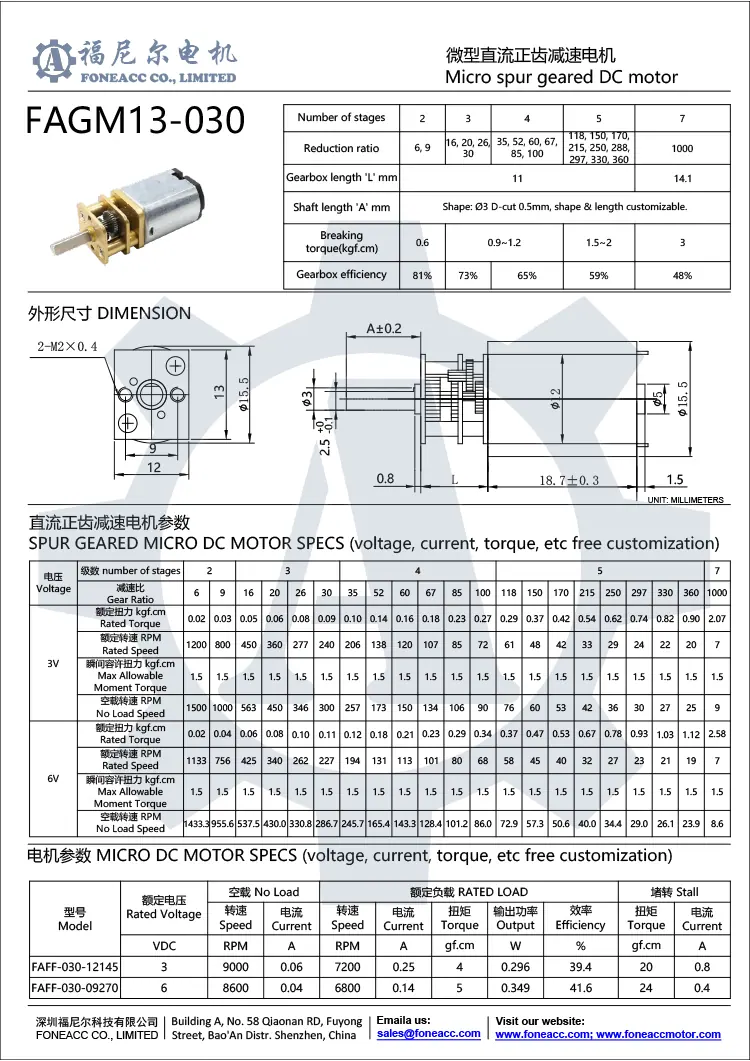

The datasheet of GM13-030 is as below:
Notice: Data in this typical specification sheet are for certain customers. The power voltage, rated torque, speed, current, power, and driveshaft extension can be customized to meet customer-specific requirements.
Tables for clear view:
| Voltage | number of stages | 2 | 3 | 4 | 5 | 7 | ||||||||||||||||
| Gear Ratio | 6 | 9 | 16 | 20 | 26 | 30 | 35 | 52 | 60 | 67 | 85 | 100 | 118 | 150 | 170 | 215 | 250 | 297 | 330 | 360 | 1000 | |
| 3V | kgf.cm Rated Torque |
0.02 | 0.03 | 0.05 | 0.06 | 0.08 | 0.09 | 0.10 | 0.14 | 0.16 | 0.18 | 0.23 | 0.27 | 0.29 | 0.37 | 0.42 | 0.54 | 0.62 | 0.74 | 0.82 | 0.90 | 2.07 |
| RPM Rated Speed |
1200 | 800 | 450 | 360 | 277 | 240 | 206 | 138 | 120 | 107 | 85 | 72 | 61 | 48 | 42 | 33 | 29 | 24 | 22 | 20 | 7 | |
| kgf.cm Max Allowable Moment Torque |
1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| RPM No Load Speed |
1500 | 1000 | 563 | 450 | 346 | 300 | 257 | 173 | 150 | 134 | 106 | 90 | 76 | 60 | 53 | 42 | 36 | 30 | 27 | 25 | 9 | |
| 6V | kgf.cm Rated Torque |
0.02 | 0.04 | 0.06 | 0.08 | 0.10 | 0.11 | 0.12 | 0.18 | 0.21 | 0.23 | 0.29 | 0.34 | 0.37 | 0.47 | 0.53 | 0.67 | 0.78 | 0.93 | 1.03 | 1.12 | 2.58 |
| RPM Rated Speed |
1133 | 756 | 425 | 340 | 262 | 227 | 194 | 131 | 113 | 101 | 80 | 68 | 58 | 45 | 40 | 32 | 27 | 23 | 21 | 19 | 7 | |
| kgf.cm Max Allowable Moment Torque |
1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| RPM No Load Speed |
1433.3 | 955.6 | 537.5 | 430.0 | 330.8 | 286.7 | 245.7 | 165.4 | 143.3 | 128.4 | 101.2 | 86.0 | 72.9 | 57.3 | 50.6 | 40.0 | 34.4 | 29.0 | 26.1 | 23.9 | 8.6 | |
| Model | Rated Voltage | No Load | RATED LOAD | Stall | ||||||
| Speed | Current | Speed | Current | Torque | Output | Efficiency | Torque | Current | ||
| VDC | RPM | A | RPM | A | gf.cm | W | % | gf.cm | A | |
| FF-030-12145 | 3 | 9000 | 0.06 | 7200 | 0.25 | 4 | 0.296 | 39.4 | 20 | 0.8 |
| FF-030-09270 | 6 | 8600 | 0.04 | 6800 | 0.14 | 5 | 0.349 | 41.6 | 24 | 0.4 |
The whole small spur gear dc electric motor family is as below:
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Small spur gear dc motor applications |
Sweeping robot, CCTV camera, electric lock, electrical curtain, printer, atm, copiers and scanners, vending machines, hand blenders, mixers, coffee machines, fryers, projectors, grinders, polishers, trimmers, amusement machine, financial machine, peristaltic pump, medical apparatus and instruments, automotive, communications equipment, smart home, intelligent security, household appliances, electric kitchen equipment, machinery and electronics, and other high-end transmission structures
