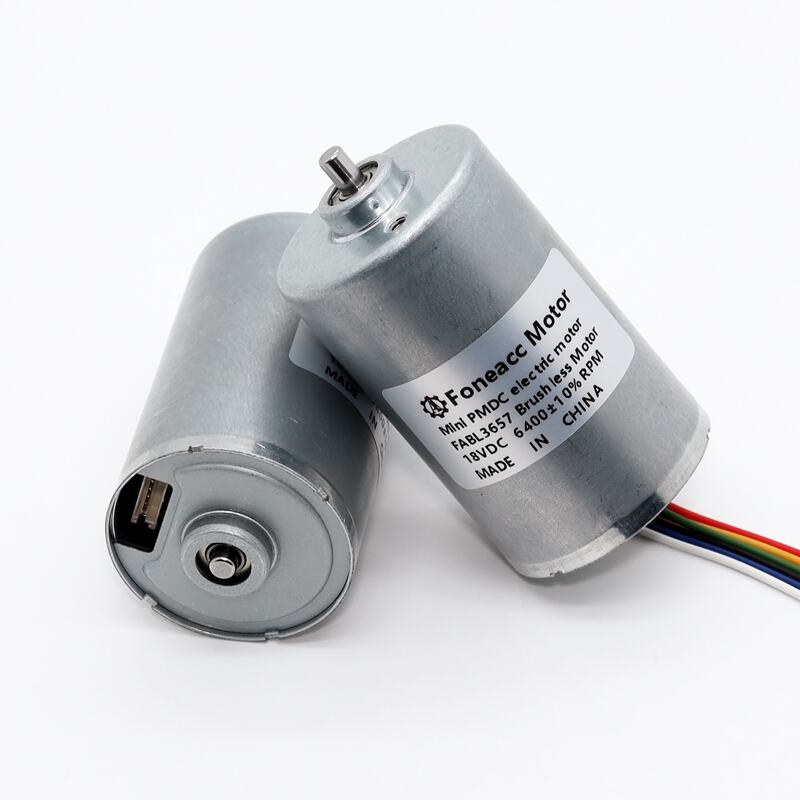

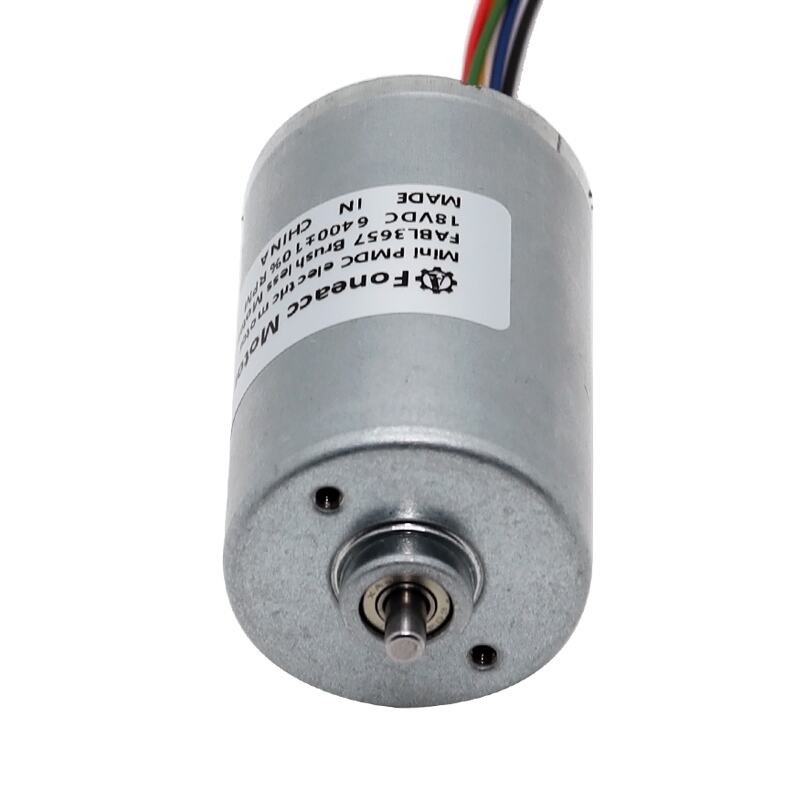

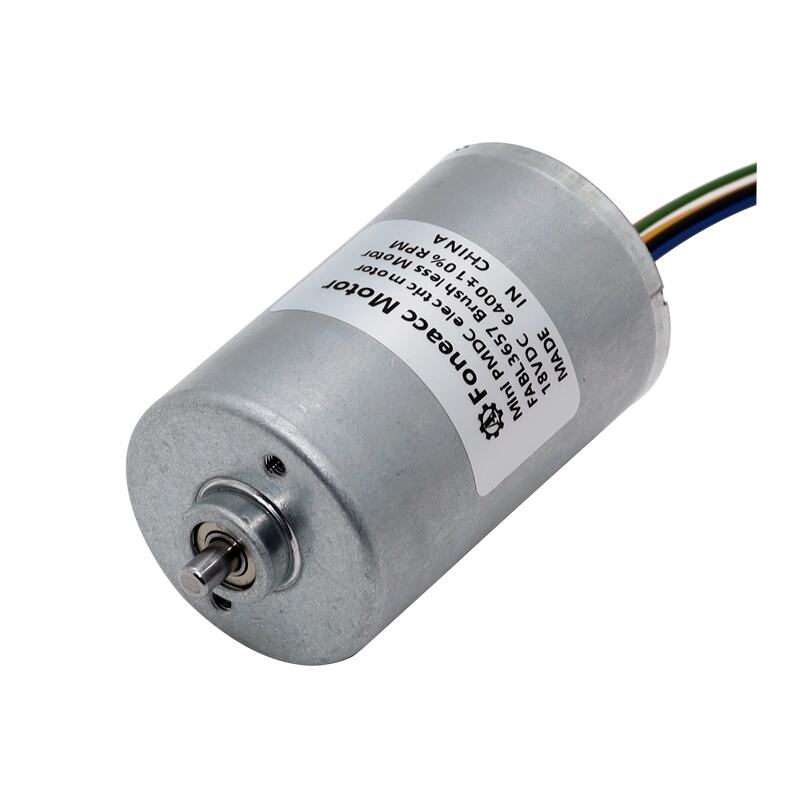

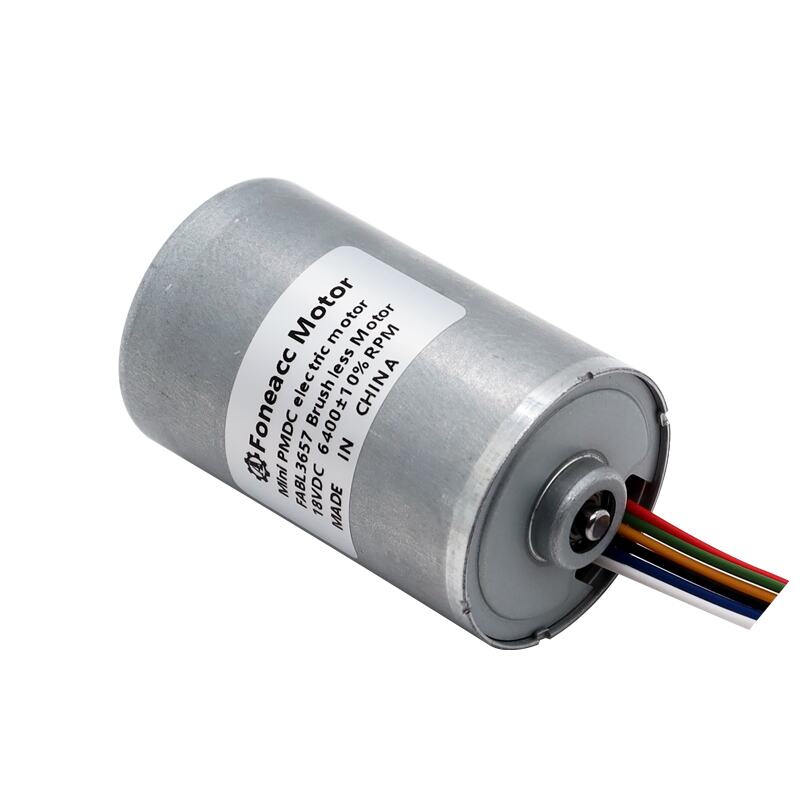

BL3657I B3657M OD Ø 36mm bldc inner rotor brushless dc electric motor

BL3657I B3657M OD Ø 36mm bldc inner rotor brushless dc electric motor

Item No.: BL3657I B3657M

motor case diameter: 36 mm

motor case length: 57 mm

motor case shape: round motor shell

brush type: brushless

motor type: single bldc motor

bearing type: bushing/ball bearing

manufacturer: FONEACC MOTOR

Get the Best Price

FABL3657 datasheet

Description

BL3657 B3657M diameter 36mm inner rotor brushless dc motor, 3 phase 12 poles 9 slots bldc motor with built-in driver, hall effect commutation. Rated economic Output 5~50W.
Here below is a example datasheet for our built-in driver bldc motor model BL3657I for your reference.

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

Send us your detailed requirements: [email protected]

Key features:

Stator shell dimension: Φ36.057.0mm (Φ 1.42 inch 2.24 inch)	Strong Magnet Magnet made of Nd2Fe14B	Low noise <60dB from 30 cm distance
Low EMC friendly to equipments in its environment	Long lifespan Durable:2000~20000 hrs	Built-in Drive Board
Hall sensors 3 hall effect sensors inside	PWM control Pulse Width Modulated	CW & CCW rotation
FG speed feedback signal Frequency Generator signal	Protection Feature: Over-current, Over-voltage, Under-voltage protection	ODM acceptable
OEM acceptable	Bearing Type: Bushing or Ball bearing	Driveshaft custom: D, O, knurling, screw thread, etc.

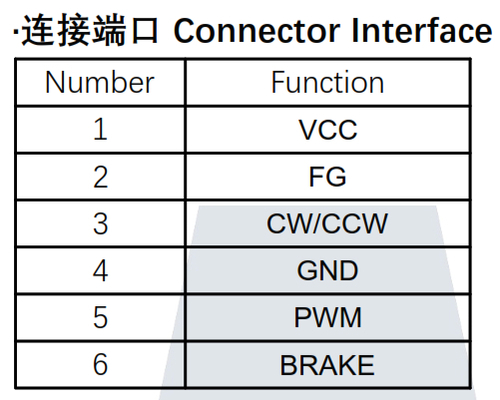

For brushless dc motor with our own built-in controller, the cables connection interface is as below:
connection interface for 36 mm bldc motor with built-in driver.webp

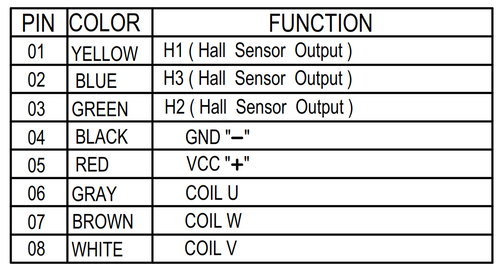

Also, you can choose our bldc motor without built-in controller, only with 3 hall effect sensors, the cables connection interface is as below:

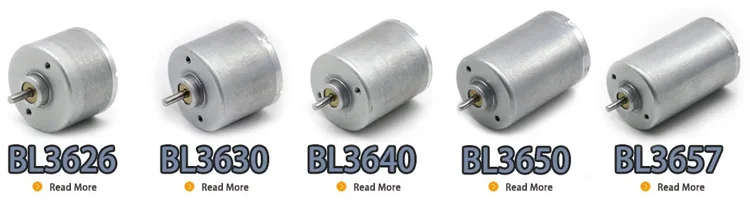

ALL OD 36mm series BLDC brushless dc motor

BL3626,BL3630,BL3640,

BL3650, BL3657

Output Power: 2W~90W

Weight: 95g ~ 190g (Approx.)

Brushless DC Motor-Typical Application

Home Application: White Goods, Small Appliance, Fanner, Coffee Machine, Milk Tea Machine

Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Machine

Industry Equipment: Pump, Portable Screwdriver, Small Compressor

Business Equipment: Printer, Copier, Projector, ATM, Vending Machine

Personal Care: Hair Dryer, Electric Shaver, Massager

Model	Voltage(V)		No Load		Rated Load				Stall
Model	Operating Range	Rated	Speed (rpm)	Current (A)	Torque (g.cm)	Speed (rpm)	Current (A)	Output P. (W)	Torque (g.cm)	Current (A)
BL3626-V1	8~16V	12	6027	0.15	96.1	4882	0.638	4.814	506	2.721
BL3626-V2	8~26V	18	7435	0.124	91	6022	0.504	5.621	478.9	2.121
BL3626-V3	8~26V	24	8927	0.111	91.3	7231	0.456	6.774	480.8	1.926
BL3630-V1	8~16V	12	5817	0.249	138.1	4882	0.638	6.507	657.4	3.456
BL3630-V2	8~26V	18	7526	0.209	183	6171	0.957	11.584	1016.8	4.366
BL3630-V3	8~26V	24	8872	0.184	191.3	7364	0.872	14.451	1125.6	4.234
BL3640-V1	8~16V	12	4769	0.16	146.7	4006	0.818	6.028	917	4.271
BL3640-V2	8~26V	18	7068	0.19	211.93	6008	1.071	13.055	1412.4	6.066
BL3640-V3	8~26V	24	8235	0.247	288.2	6835	1.186	20.205	1695.4	5.769
BL3650-S01	8~26V	12	5300	0.46	239.794	4600	1.53	11.35	793.8712	2.5
BL3650-S02	8~26V	24	13800	0.32	306.12	11360	1.99	35.69	1058.155	3
BL3650-S03	8~26V	24	4327	0.18	459.18	3714	1.01	17.49	3232.627	2.5
BL3650-S04	8~26V	24	19400	0.44	183.672	18080	1.84	34.09	774.4836	3
BL3650-S05	8~26V	24	28518	0.64	32.37	23172	4.73	78.56	171.42	6
BL3657-S01	8~16V	12	4154	0.19	196.9	3448	0.904	6.963	1158.3	4.405
BL3657-S02	8~26V	24	6382	0.22	267	5425	1.174	14.85	1779.7	6.604
BL3657-S03	8~26V	24	8610	0.28	384.6	7230	1.572	28.53	2403.9	8.342

Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-50000hrs
