OD Ø 42mm small BLDC motor

BL4235 B4235M 42mm inner rotor bldc brushless dc motor with driver

Item No.: BL4235 B4235M
Specifications:
Size: Ø42.0* 35.0mm
Built-in driver
PWM pulse wide speed range
Clockwise/counter-clockwise rotation
FG speed feedback signal
Low EMC
Low noise
Long life: 20000hrs Min.
Over-current protection
Over-voltage protection
Under-voltag
Description
BL4235i B4235M OD Diameter 42mm Micro Brushless DC BLDC Motor | FoneAcc Motion

Specifications:
Size: φ42.0* 35.0mm
Built-in driver
PWM pulse wide speed range
Clockwise/counter-clockwise rotation
FG speed feedback signal
Low EMC
Low noise
Long life: 20000hrs Min.
Over-current protection
Over-voltage protection
Under-voltage protection
OEM and ODM orders are welcome
The design can be customized

Applications:
Personal care, home application, industry apparatus, business equipment, and medical apparatus
Samples can be sent on your request.

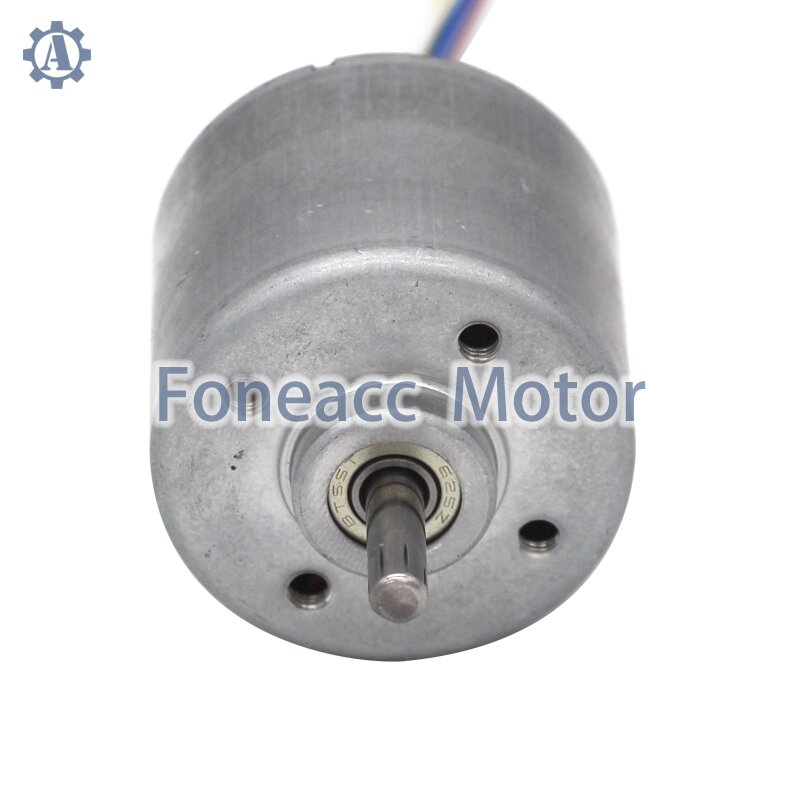

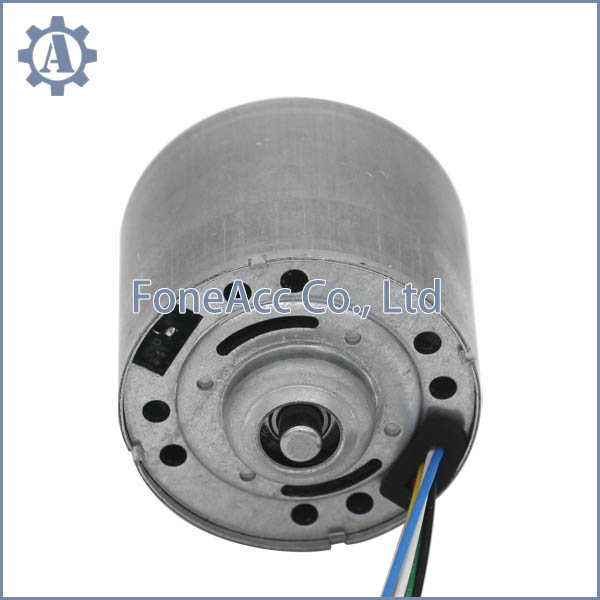

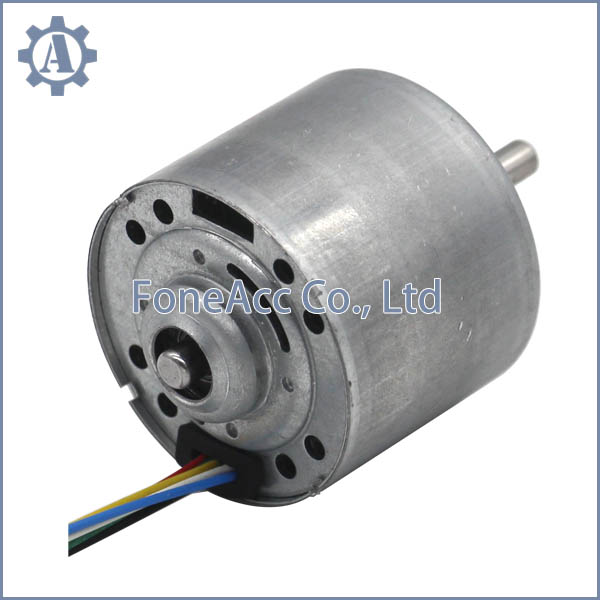

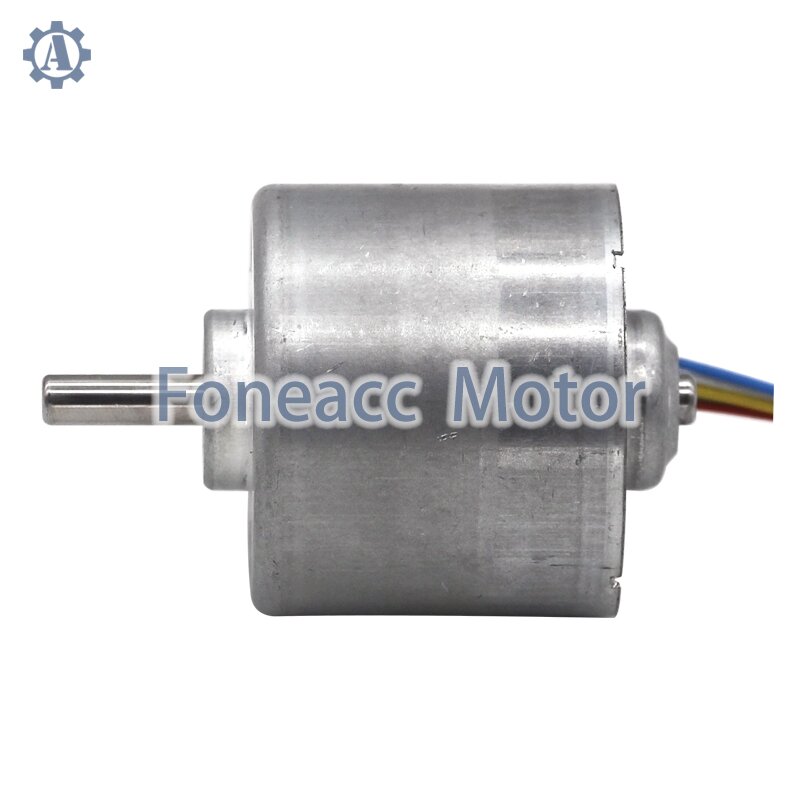

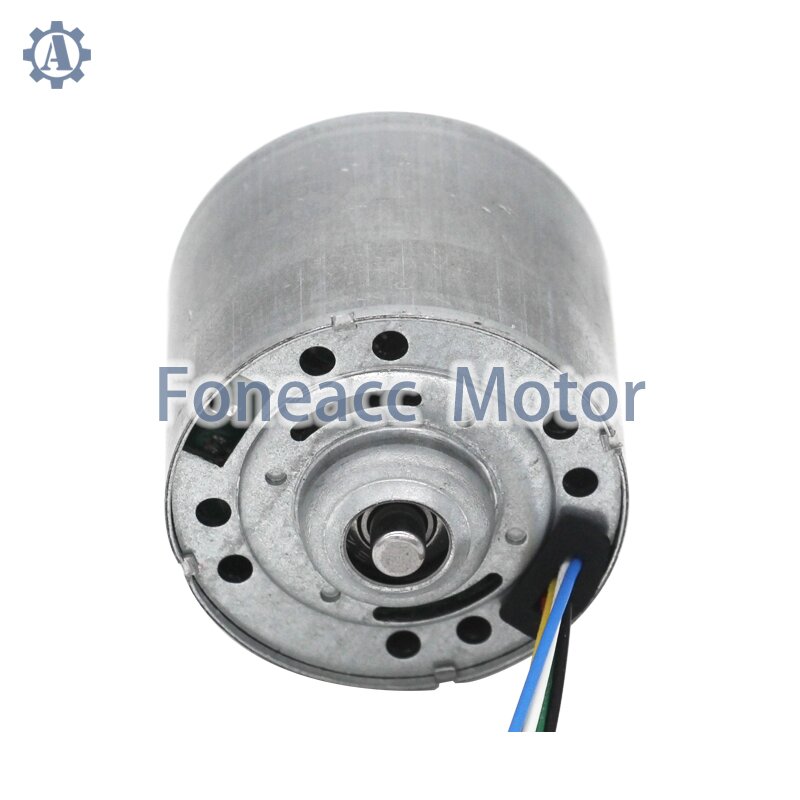

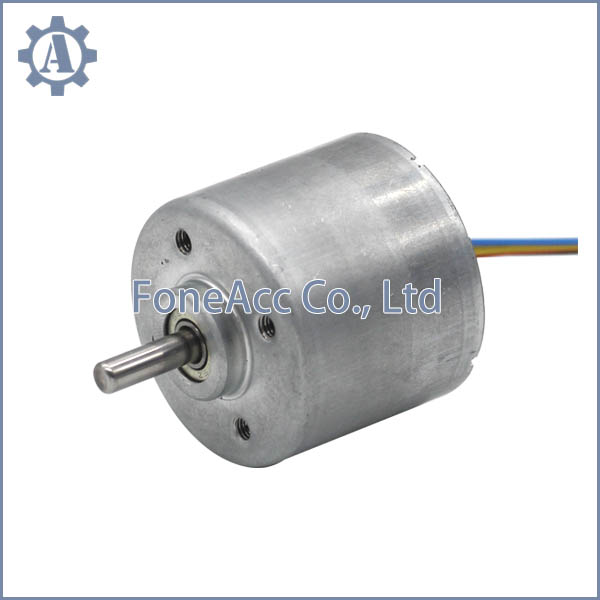

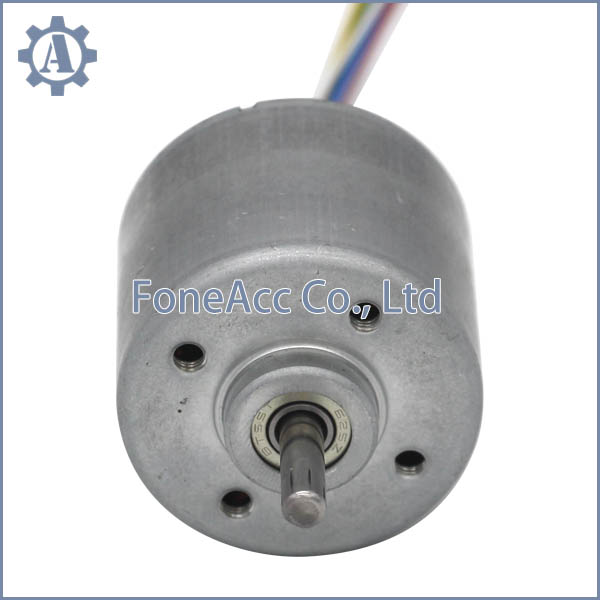

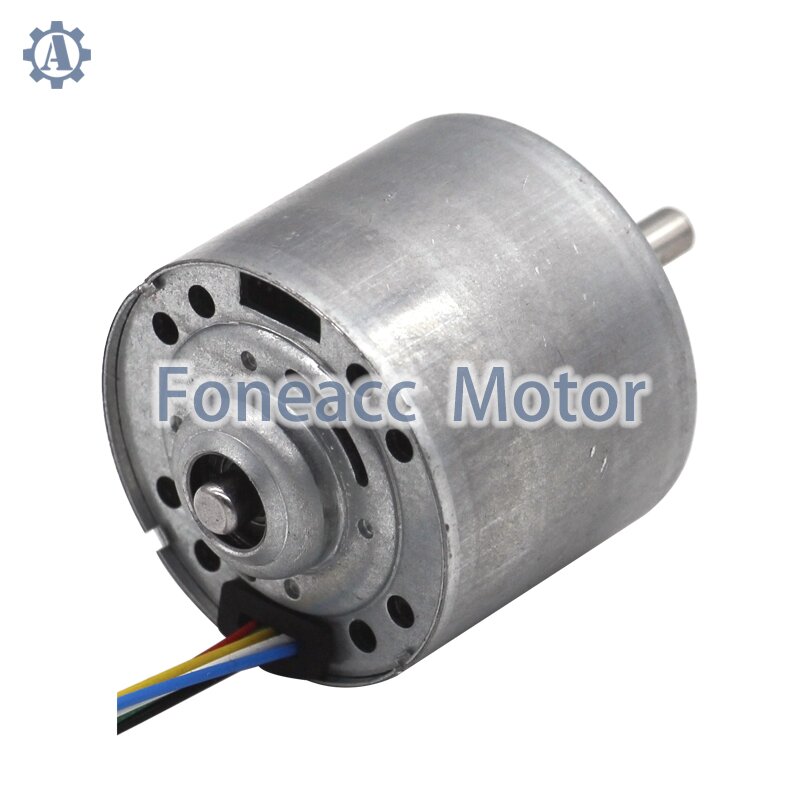

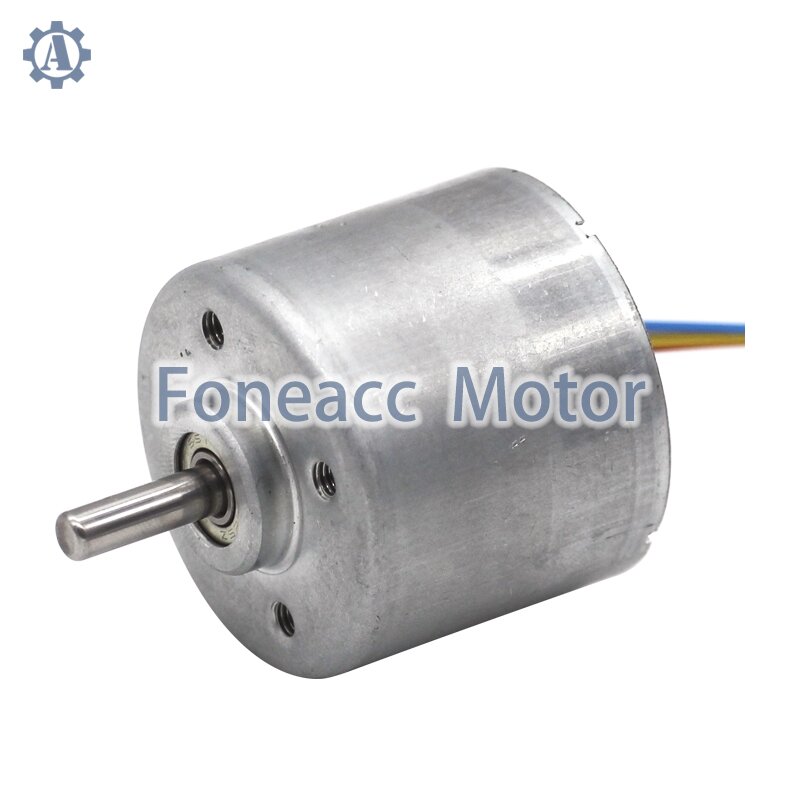

image of BL4235 motor

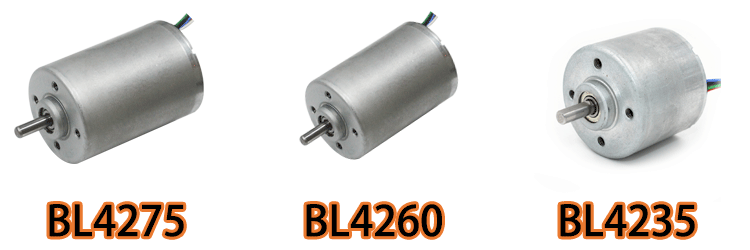

BL4235, BL4260,

BL4275



Output Power: 5W~60W Weight: 160g ~ 330g (Approx.)

Brushless DC Motor-Typical Application

Home Application: White Goods, Small Appliance, Fanner, Coffee Machine, Milk   Tea Machine

Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer, centrifugal   Machine

Industry Equipment: Pump, Portable Screwdriver, Small Compressor

Business Equipment: Printer, Copier, Projector, ATM, Vending Machine

Personal Care: Hair Dryer, Electric Shaver, Massager

Model Voltage(V) No Load Rated Load Stall
Operating Range Rated Speed (rpm) Current (A) Torque (g.cm) Speed (rpm) Current (A) Output P. (W) Torque (g.cm) Current (A)
BL4235-V1 8~26 12 2860 0.21 410.2008 2050 1.16 8.62 1438.764 2.5
BL4235-V2 8~26 24 6370 0.3 357.14 5100 1.17 18.72 1793.863 2.5
BL4235-V3 8~26 24 9400 0.53 184.1822 8530 1.16 16.12 1988.76 2.5
BL4235-V4 8~26 24 5539 0.25 561.5261 4393 1.41 25.31 2696.917 2.5
BL4235-V5 8~26 24 8455 0.33 408.16 7580 1.64 31.75 3946.907 2.5
BL4260-V1 8~26 12 4590 0.28 459.18 3500 1.88 16.54 1940.801 3
BL4260-V2 8~26 24 4260 0.26 969.9922 3270 1.85 32.58 4175.477 3
BL4260-V3 8~26 24 4046 0.24 612.6482 3342 1.21 21.01 3516.298 2.5
BL4275-V1 8~26 12 2511 0.43 1101.012 1310 2.38 14.8 2265.288 5
BL4275-V2 8~26 12 2813 0.34 867.34 2292 2.29 20.4 4673.432 5
BL4275-V3 8~26 18 3790 0.32 857.3401 2930 2 25.8 3755.072 5
BL4275-V4 8~26 24 5050 0.42 1108.154 3900 2.62 44.3 3877.52 5
Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-50000hrs

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

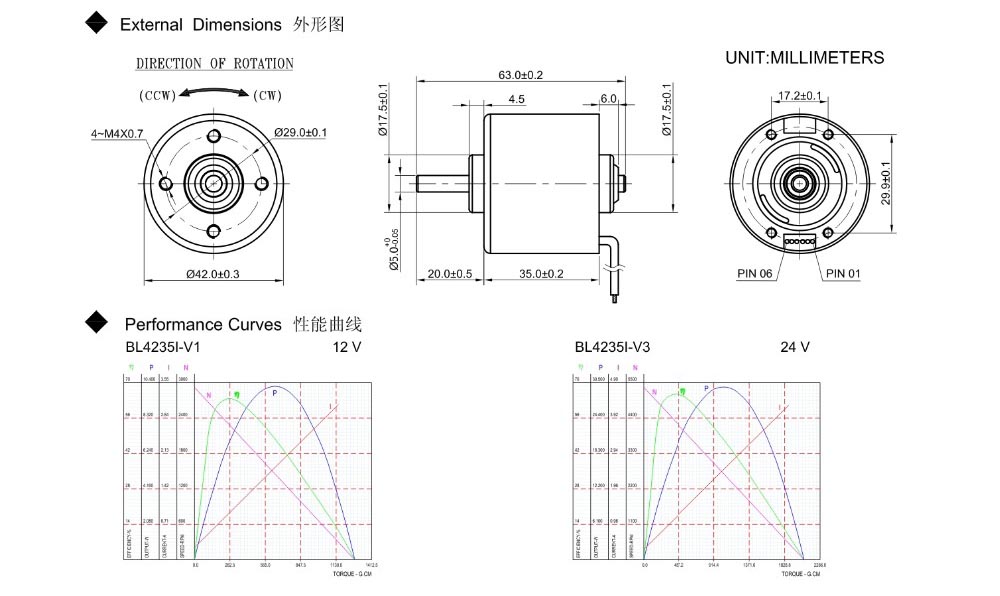

BL4235 Data:

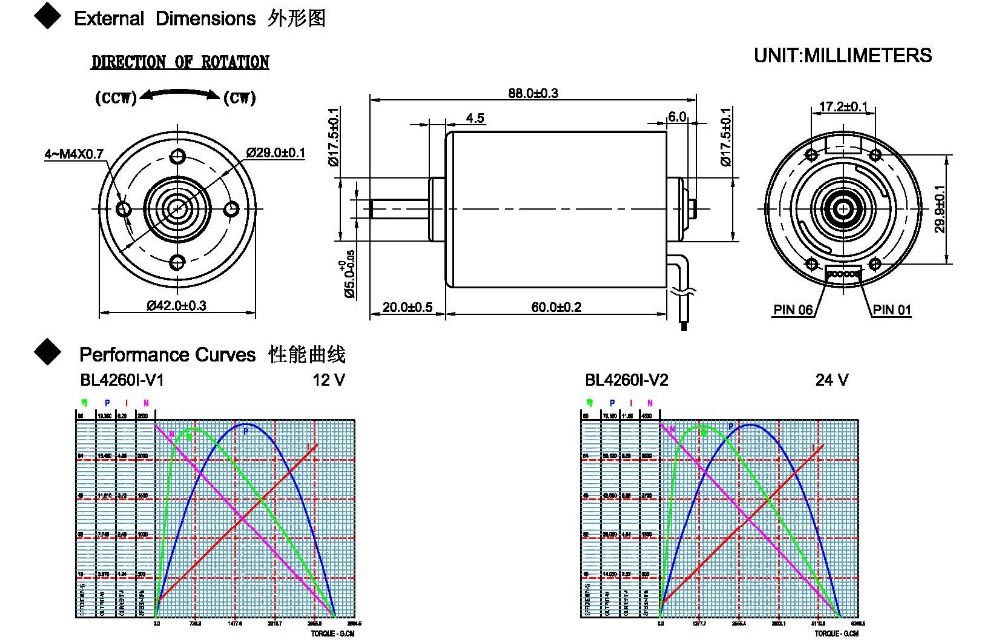

BL4260 Data

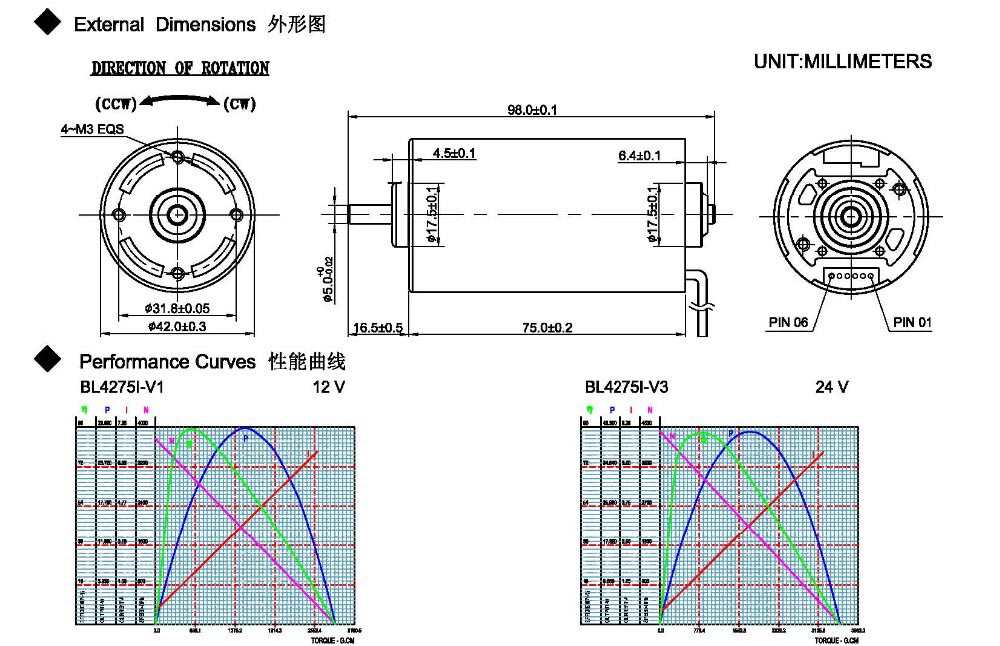

BL4275 Data
