Φ 28 mm inrunner bldc motor with driver

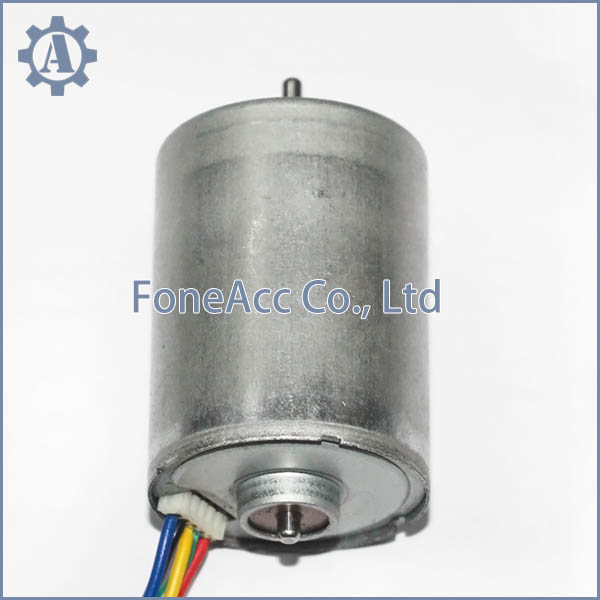

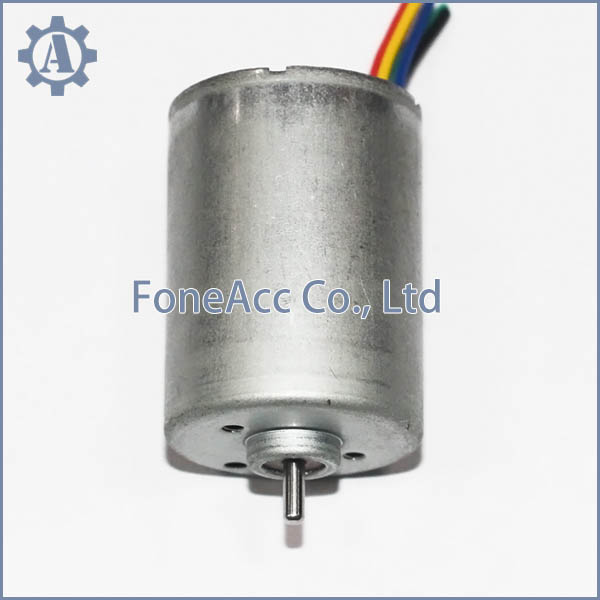

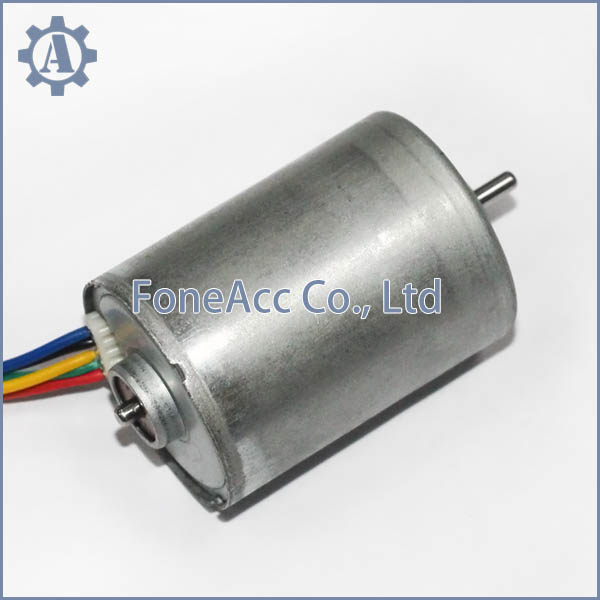

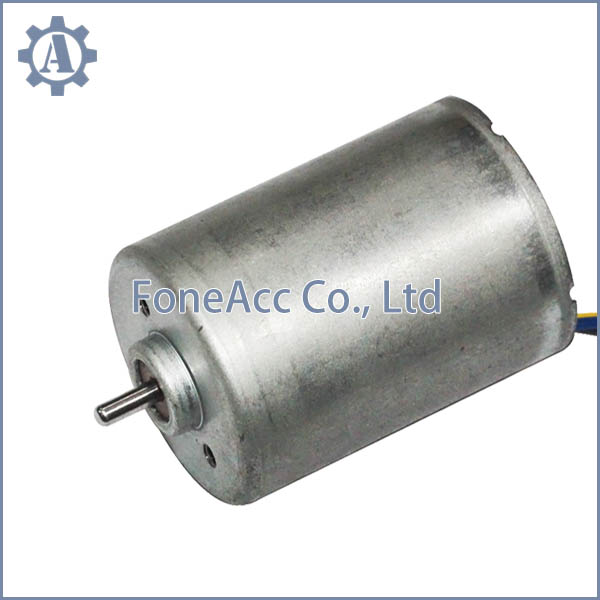

BL2838 B2838M 28mm inner rotor bldc brushless dc motor

Item No.: BL2838I B2838M
| - Shell Stator Size : Φ28* L 38 mm;
| - Rated Output Power: 1W - 16W;
| - Rated Voltage: DC 6V - 24V;
| - Rated Torque: up to 120 gf-cm;
| - Shaft : Φ2.3mm, length custom;
| - Driver: built-in driver with 3 hall sensors
| - MOQ: 500 pcs.
  • motor case diameter: 28 mm
  • motor case length: 38 mm
  • motor case shape: round motor shell
  • brush type: brushless
  • motor type: single bldc motor
  • bearing type: bushing/ball bearing
  • manufacturer: FONEACC MOTOR
  • Description

    FABL2838 B2838M 28mm inner rotor bldc brushless dc motor

    Specifications:

    Size: Φ28.0* 38.0mm; Built-in driver; PWM pulse wide speed range;
    Clockwise/counter-clockwise rotation; FG speed feedback signal;
    Low EMC; Low noise; Long life: 20000hrs Min.
    Over-current protection; Over-voltage protection; Under-voltage protection;

    The design can be customized, OEM and ODM orders are welcome

    Applications:

    Personal care, home application, industry apparatus, business equipment, and medical apparatus

    Samples can be sent on your request.

    FABL2838.webp FABL2838 Output Power: 1W~30W Weight: 75g (Approx.)
    Brushless DC Motor-Typical Application

    Home Application: White Goods, Small Appliance, Fanner, Electric Curtain

    Medical Apparatus: Medical Pump, Blood Pressure Meter, Surgery Tools, Medical Stirrer, centrifugal machine

    Industry Equipment: Electric Valve, Portable Screwdriver, Air Pump, Water Pump, Vacuum Pump

    Business Equipment: Printer, Copier, Projector, Scanner, Cash Register

    Personal Care: Hair Dryer, Electric Shaver, Massager

    Model Voltage(V) No Load Rated Load Stall
    Operating Range Rated Speed (rpm) Current (A) Torque (mNm) Speed (rpm) Current (A) Output P. (W) Torque (mNm) Current (A)
    FABL2838-V1 6~12 7.4 4400 0.15 7 4100 0.68 3 38 1.6
    FABL2838-V2 8~26 12 3900 0.09 12 3200 0.58 4.1 69.4 1.6
    FABL2838-V3 8~26 24 7640 0.15 18 4700 0.9 9 48 2.5
    FABL2838-V4 8~26 24 9400 0.18 24 5800 1.38 14.6 60 2.5



    Motor drawing:





    FABL2838-V2                       12V FABL2838-V4                        24V


    Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized.

    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life >2000hrs

    5 wires built-in driver interface instruction.webp
