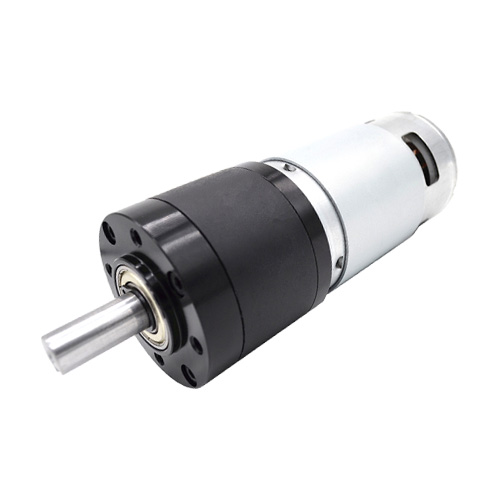

Φ 57 mm mini planetary gear motor

FAPG57-997 57 mm small metal planetary gearhead dc electric motor

Item No.: FAPG57-997
- Rated Voltage: DC 9V,12V,24V,36V;
- Rated Torque: Max. 360Kgf-cm ;
- Size : Φ57* L TBD ;
- Shaft : Φ12mm D-cut 4mm, custom;
- Encoder : Magnetic encoder;
- MOQ: 500 pcs
  • motor case diameter: 57 mm
  • motor case shape: l
  • brush type: carbon brush/metal brush
  • motor type: miniature gearbox permanent magnet dc electric motor
  • gearbox type: metal planetary gearhead reducer
  • driveshaft shape: D, O, knurling, screw thread, Customization
  • bearing type: bushing/ball bearing
  • manufacturer: FONEACC MOTOR
  • Description

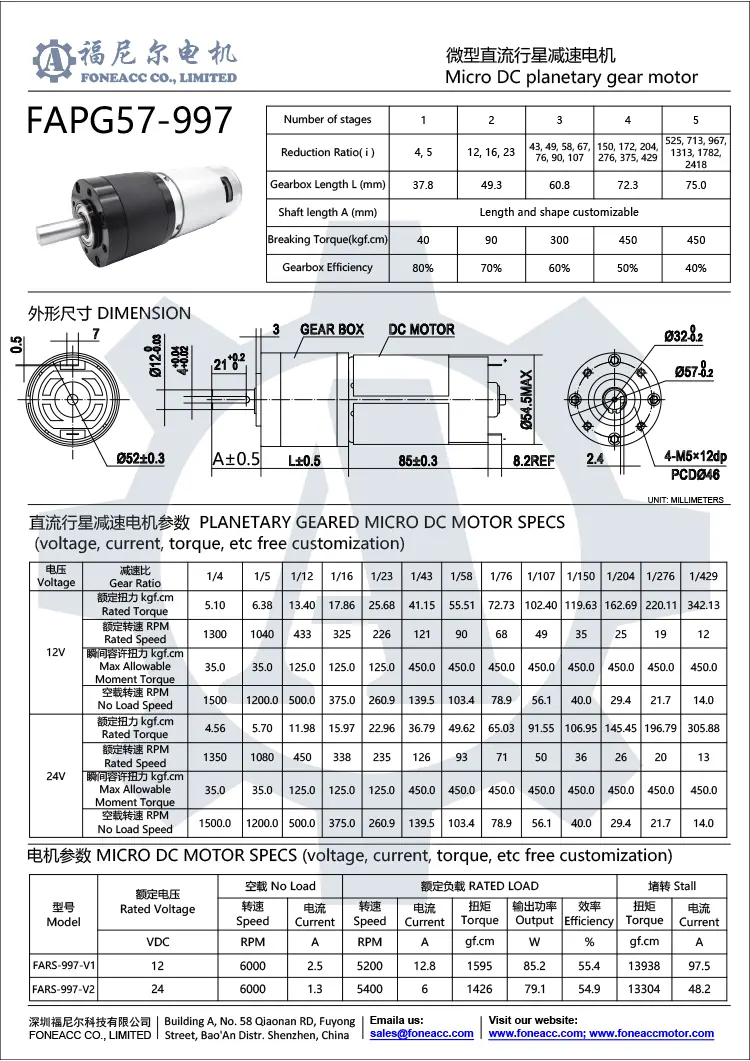

    The datasheet of PG57-997 is as below:

    pg57-997 57 mm small planetary gearhead dc electric motor.webp

    Notice: Data in this typical specification sheet are for certain customers. The power voltage, rated torque, speed, current, power, and driveshaft extension can be customized to meet customer-specific requirements.



    Tables for clear view:

    data table of pg57-997 planetary gearhead dc electric motor
    Voltage Gear Ratio    1/4     1/5     1/12    1/16    1/23    1/43    1/58    1/76    1/107    1/150    1/204    1/276    1/429
    12V kgf.cm
    Rated Torque
    5.10 6.38 13.40 17.86 25.68 41.15 55.51 72.73 102.40 119.63 162.69 220.11 342.13
    RPM
    Rated Speed
    1300 1040 433 325 226 121 90 68 49 35 25 19 12
    kgf.cm
    Max Allowable
    Moment Torque
    35.0 35.0 125.0 125.0 125.0 450.0 450.0 450.0 450.0 450.0 450.0 450.0 450.0
    RPM
    No Load Speed
    1500 1200.0 500.0 375.0 260.9 139.5 103.4 78.9 56.1 40.0 29.4 21.7 14.0
    24V kgf.cm
    Rated Torque
    4.56 5.70 11.98 15.97 22.96 36.79 49.62 65.03 91.55 106.95 145.45 196.79 305.88
    RPM
    Rated Speed
    1350 1080 450 338 235 126 93 71 50 36 26 20 13
    kgf.cm
    Max Allowable
    Moment Torque
    35.0 35.0 125.0 125.0 125.0 450.0 450.0 450.0 450.0 450.0 450.0 450.0 450.0
    RPM
    No Load Speed
    1500.0 1200.0 500.0 375.0 260.9 139.5 103.4 78.9 56.1 40.0 29.4 21.7 14.0
    single motor RS-997 dc electric motor specs
    Model Rated Voltage No Load RATED LOAD Stall
    Speed Current Speed Current Torque Output Efficiency Torque Current
    VDC RPM A RPM A gf.cm W % gf.cm A
    RS-997-V1 12 6000 2.5 5200 12.8 1595 85.2 55.4 13938 97.5
    RS-997-V2 24 6000 1.3 5400 6 1426 79.1 54.9 13304 48.2

    The whole small planetary gearhead dc electric motor family is as below:
    OD Φ 10 mm small plastic planetary gearbox dc electric motor:
    pg10-m10 10 mm small plastic planetary gearbox dc electric motor.webp
    OD Φ 16 mm small planetary gearbox dc electric motor:
    pg16-050 16 mm small metal planetary gearhead dc electric motor.webp pg16-1625r 16 mm small metal planetary gearhead dc electric motor.webp pg16-bl1625 16 mm small metal planetary gearhead dc electric motor.webp
    OD Φ 22 mm small planetary gearbox dc electric motor:
    pg22-250 22 mm small metal planetary gearhead dc electric motor.webp pg22-180 22 mm small metal planetary gearhead dc electric motor.webp pg22-bl2238 22 mm small metal planetary gearhead dc electric motor.webp
    OD Φ 24 mm small planetary gearbox dc electric motor:
    pg24-290 24 mm small metal planetary gearhead dc electric motor.webp pg24-370 24 mm small metal planetary gearhead dc electric motor.webp
    OD Φ 28 mm small planetary gearbox dc electric motor:
    pg28-395 28 mm small metal planetary gearhead dc electric motor.webp pg28-bl2838 28 mm small metal planetary gearhead dc electric motor.webp
    OD Φ 32 mm small planetary gearbox dc electric motor:
    pg32-395 32 mm small metal planetary gearhead dc electric motor.webp pg32-545 32 mm small metal planetary gearhead dc electric motor.webp
    OD Φ 36 mm small planetary gearbox dc electric motor:
    pg36-555 36 mm small metal planetary gearhead dc electric motor.webp pg36-bl3650 36 mm small metal planetary gearhead dc electric motor.webp pg36-bl3657 36 mm small metal planetary gearhead dc electric motor.webp
    OD Φ 42 mm small planetary gearbox dc electric motor:
    pg42-775 42 mm small metal planetary gearhead dc electric motor.webp pg42-bl4260 42 mm small metal planetary gearhead dc electric motor.webp
    OD Φ 45 mm small planetary gearbox dc electric motor:
    pg45-bl4260 45 mm small metal planetary gearhead dc electric motor.webp
    OD Φ 57 mm small planetary gearbox dc electric motor:
    pg57-997 57 mm small metal planetary gearhead dc electric motor.webp

    Small planetary gearbox reducer dc motor applications

    Sweeping robot, CCTV camera, electric lock, electrical curtain, printer, atm, copiers and scanners, vending machines, hand blenders, mixers, coffee machines, fryers, projectors, grinders, polishers, trimmers, amusement machine, financial machine, peristaltic pump, medical apparatus and instruments, automotive, communications equipment, smart home, intelligent security, household appliances, electric kitchen equipment, machinery and electronics, and other high-end transmission structures
