Ø 10 mm

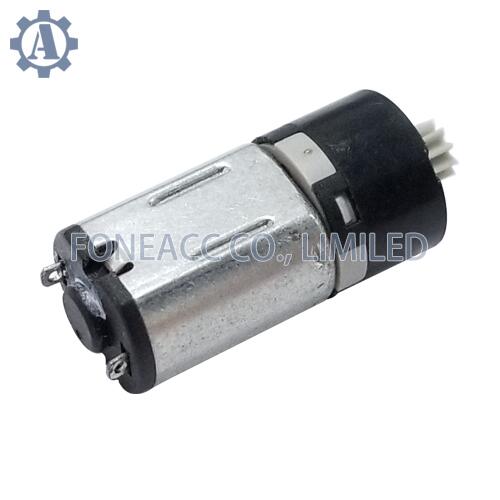

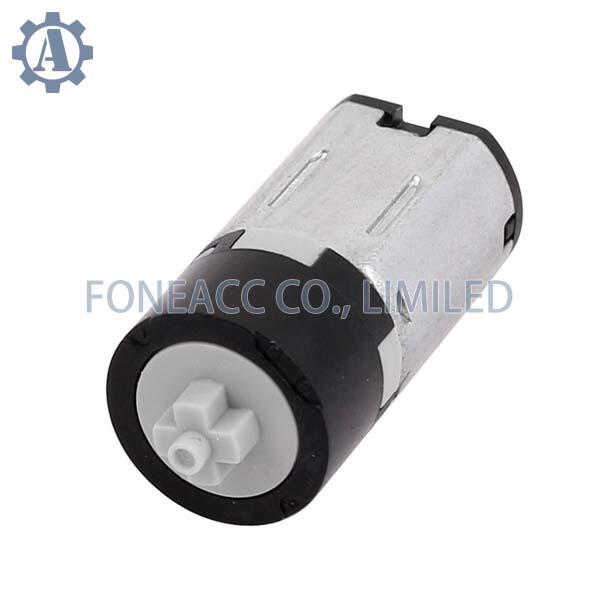

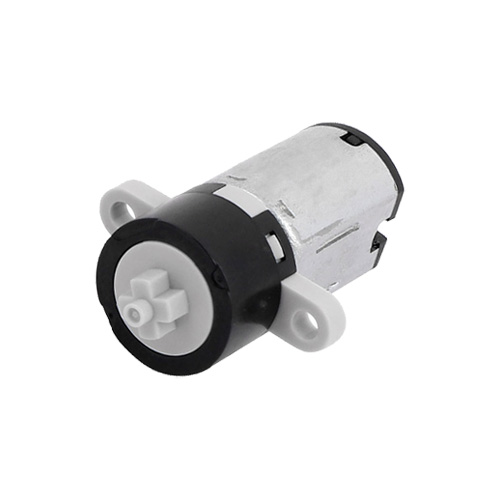

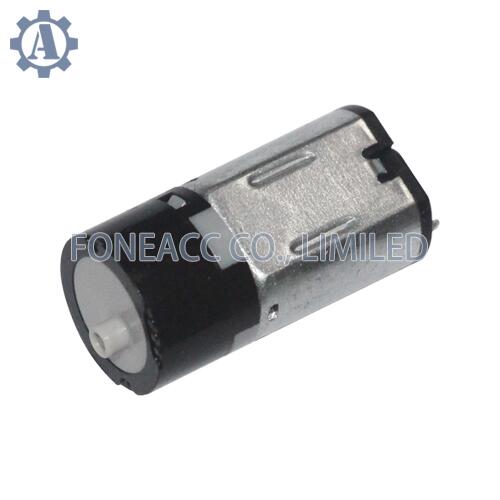

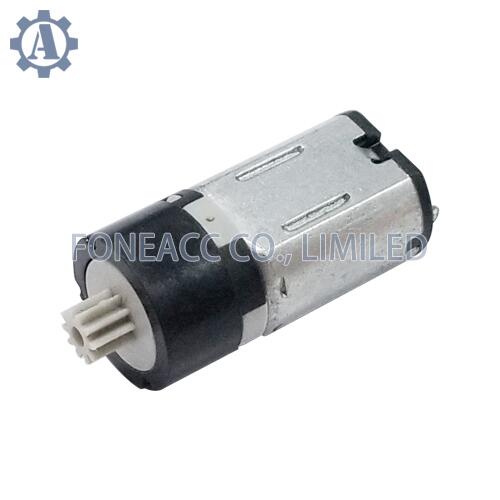

FAPG10-M10 10 mm small plastic planetary gearhead dc electric motor

Item No.: FAPG10-M10
- Rated Voltage: DC 1.5V,3V,6V,9V,12V
- Rated Torque: Max. 50gf-cm
- Size : Ø10 * L 10mm
- Shaft : +; D-cut; pinion
- Encoder : Magnetic encoder
- MOQ: 500 pcs
  • motor case diameter: 10 mm
  • motor case shape: l
  • brush type: carbon brush/metal brush
  • motor type: miniature gearbox permanent magnet dc electric motor
  • gearbox type: plastic planetary gearhead reducer
  • driveshaft shape: D, O, knurling, screw thread, Customization
  • bearing type: bushing/ball bearing
  • manufacturer: FONEACC MOTOR
  • Description

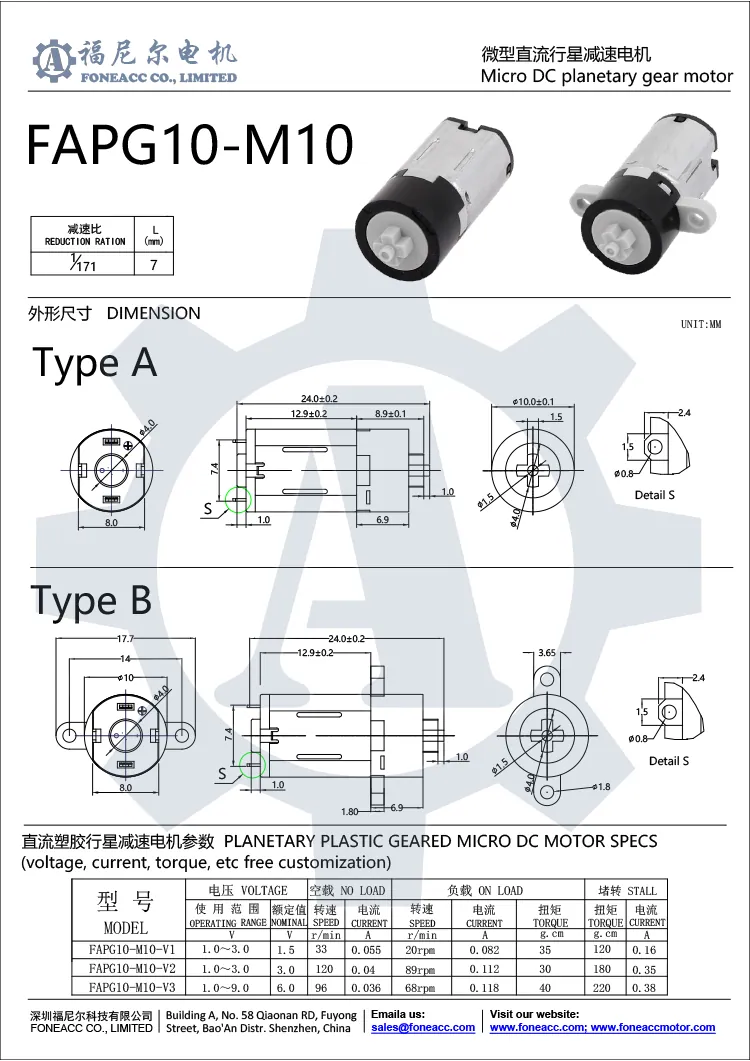

    The datasheet of PG10-M10 is as below:

    pg10-m10 10 mm small planetary gearhead dc electric motor.webp

    Notice: Data in this typical specification sheet are for certain customers. The power voltage, rated torque, speed, current, power, and driveshaft extension can be customized to meet customer-specific requirements.



    Tables for clear view:

    data table of micro planetary gearhead dc electric motor PG10-M10 specs
    Model Rated Voltage No Load RATED LOAD Stall
    Speed Current Speed Current Torque Output Efficiency Torque Current
    VDC RPM A RPM A gf.cm W % gf.cm A
    PG10-M10-V1 1.5 33 0.055 20 0.082 35 0.072 5.85 120 0.16
    PG10-M10-V2 3.0 120 0.04 89 0.112 30 0.028 8.16 180 0.35
    PG10-M10-V3 6.0 96 0.036 68 0.118 40 0.028 3.95 220 0.38
    The whole small planetary gearhead dc electric motor family is as below:
    OD Ø 10 mm small plastic planetary gearbox dc electric motor:
    pg10-m10 10 mm small plastic planetary gearbox dc electric motor.webp
