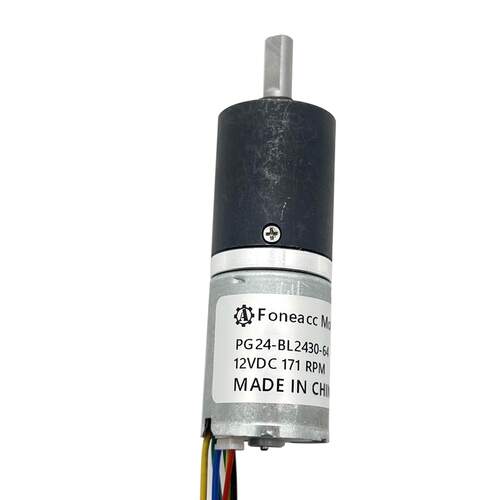

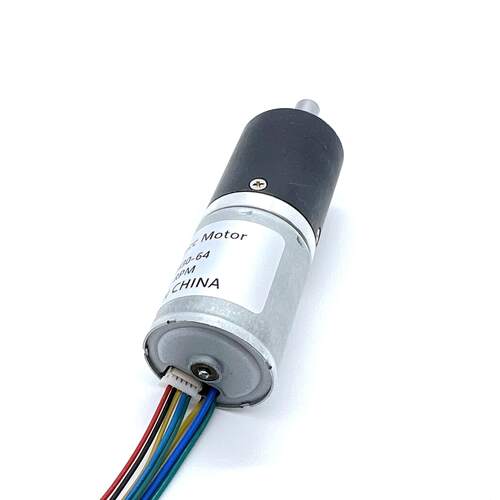

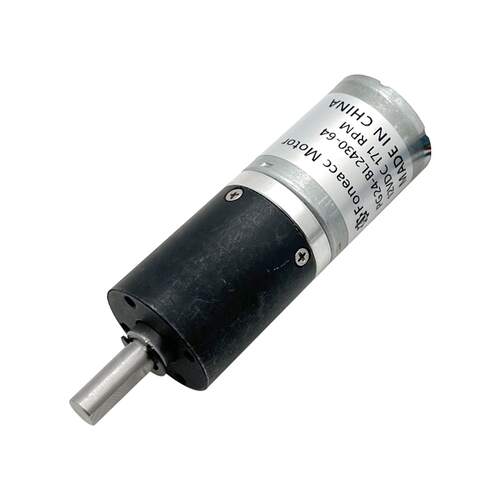

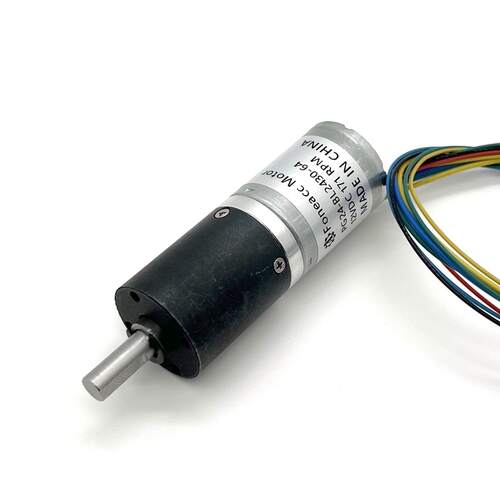

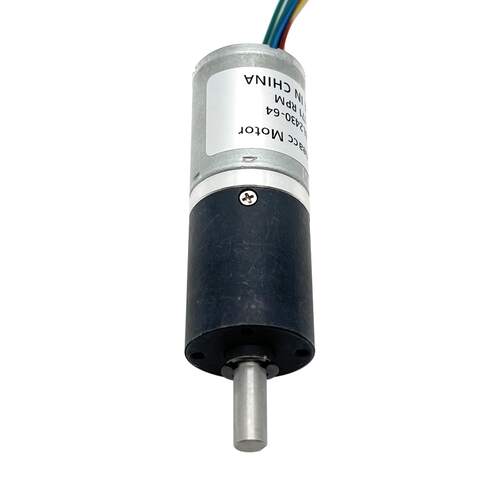

FAPG24-BL2430 24 mm small metal planetary gearhead bldc electric motor
- Gearbox: metal planetary gear reducer;
- Rated Voltage: DC 6V, 9V,12V,24V,36V;
- Rated Torque: Max. 15Kgf-cm ;
- Size : Φ24* L TBD ;
- Shaft : concentric driveshaft, Φ6mm D-cut 0.5mm, custom;
- Commutation: Brushless, PWM-d

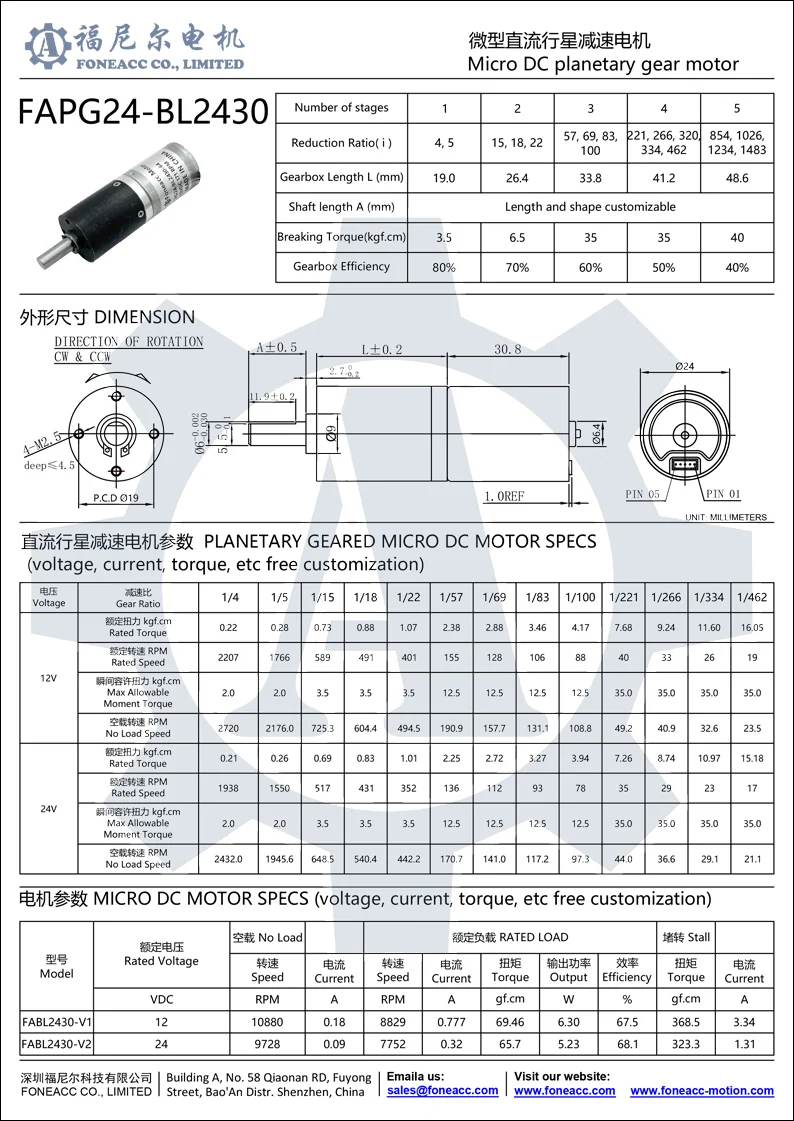

The datasheet of FAPG24-BL2430 is as below:
Notice: Data in this typical specification sheet are for certain customers. The power voltage, rated torque, speed, current, power, and driveshaft extension can be customized to meet customer-specific requirements.
Click here to view HD clear specification of FAPG24-BL2430 planetary gear motor
Tables for clear view:
| 电压 Voltage |
减速比 Gear Ratio |
1/4 | 1/5 | 1/15 | 1/18 | 1/22 | 1/57 | 1/69 | 1/83 | 1/100 | 1/221 | 1/266 | 1/334 | 1/462 |
| 12V | 额定扭力 kgf.cm Rated Torque |
0.22 | 0.28 | 0.73 | 0.88 | 1.07 | 2.38 | 2.88 | 3.46 | 4.17 | 7.68 | 9.24 | 11.60 | 16.05 |
| 额定转速 RPM Rated Speed |
2207 | 1766 | 589 | 491 | 401 | 155 | 128 | 106 | 88 | 40 | 33 | 26 | 19 | |
| 瞬间容许扭力 kgf.cm Max Allowable Moment Torque |
2.0 | 2.0 | 3.5 | 3.5 | 3.5 | 12.5 | 12.5 | 12.5 | 12.5 | 35.0 | 35.0 | 35.0 | 35.0 | |
| 空载转速 RPM No Load Speed |
2720 | 2176.0 | 725.3 | 604.4 | 494.5 | 190.9 | 157.7 | 131.1 | 108.8 | 49.2 | 40.9 | 32.6 | 23.5 | |
| 24V | 额定扭力 kgf.cm Rated Torque |
0.21 | 0.26 | 0.69 | 0.83 | 1.01 | 2.25 | 2.72 | 3.27 | 3.94 | 7.26 | 8.74 | 10.97 | 15.18 |
| 额定转速 RPM Rated Speed |
1938 | 1550 | 517 | 431 | 352 | 136 | 112 | 93 | 78 | 35 | 29 | 23 | 17 | |
| 瞬间容许扭力 kgf.cm Max Allowable Moment Torque |
2.0 | 2.0 | 3.5 | 3.5 | 3.5 | 12.5 | 12.5 | 12.5 | 12.5 | 35.0 | 35.0 | 35.0 | 35.0 | |
| 空载转速 RPM No Load Speed |
2432.0 | 1945.6 | 648.5 | 540.4 | 442.2 | 170.7 | 141.0 | 117.2 | 97.3 | 44.0 | 36.6 | 29.1 | 21.1 |
| 型号 Model |
额定电压 Rated Voltage |
空载 No Load | 额定负载 RATED LOAD | 堵转 Stall | ||||||
| 转速 Speed |
电流 Current |
转速 Speed |
电流 Current |
扭矩 Torque |
输出功率 Output |
效率 Efficiency |
扭矩 Torque |
电流 Current |
||
| VDC | RPM | A | RPM | A | gf.cm | W | % | gf.cm | A | |
| FABL2430-V1 | 12 | 10880 | 0.18 | 8829 | 0.777 | 69.46 | 6.30 | 67.5 | 368.5 | 3.34 |
| FABL2430-V2 | 24 | 9728 | 0.09 | 7752 | 0.32 | 65.7 | 5.23 | 68.1 | 323.3 | 1.31 |
The whole small planetary gearhead dc electric motor family is as below:
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Small planetary gearbox reducer dc motor applications |
Sweeping robot, CCTV camera, electric lock, electrical curtain, printer, atm, copiers and scanners, vending machines, hand blenders, mixers, coffee machines, fryers, projectors, grinders, polishers, trimmers, amusement machine, financial machine, peristaltic pump, medical apparatus and instruments, automotive, communications equipment, smart home, intelligent security, household appliances, electric kitchen equipment, machinery and electronics, and other high-end transmission structures
Why choose us: |
*** Experienced manufacturer ***
We have more than 15 years of experience in producing and exporting dc gear motors to customers all over the world.
*** Motor custom ***
We accept OEM or ODM orders.
*** Samples processing ***
We have a sample workshop specialized in processing samples.
The lead time of samples is usually about 7days, some hot-selling models are about 15 days.
*** Capability ***
Our monthly capacity is more than 200000pcs.
We have many R&D engineers for professional advice and solutions.
*** Fast delivery ***
According to different quantities and DC motor/gear motor models, 15 to 40 days fast delivery time,
even during the COVID19 pandemic, we have a 99% on-time delivery rate.
*** Worry-free quality ***
Our products are widely satisfied among customers all over the world with reasonable price and good quality.
Our warranty period is one year. And our comprehensive non-performing rate is less than 1‰. For these defective dc motors, we will provide replenishment in the next batch of orders.
