BL2832I, FABL2832, brushless dc motor with built-in driver
► Shell Stator Size : Φ28* L 32 mm(Φ 1.1 inch * 1.26 inch)
► Shaft : Φ2.3mm(0.09 inch), screw lead, D shape, etc.
► Shaft length free customization
► Rated Output Power: 1W - 13W
► Rated Voltage: DC 6V - 24V

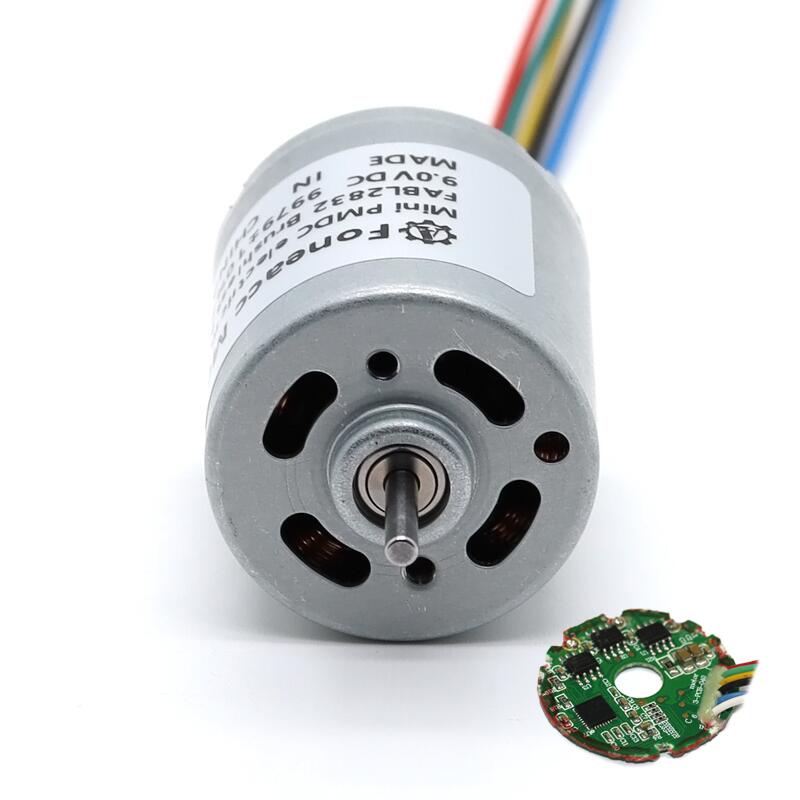

BL2832I brushless dc motor
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Main Features:
|- Model Number: BL2832I
|- Shell Stator Size : Φ28* L 32 mm(Φ 1.1 inch * 1.26 inch)
|- Shaft : Φ2.3mm(0.09 inch), screw lead, D shape, etc.
|- Shaft length free customization
|- Rated Output Power: 1W - 13W
|- Rated Voltage: DC 6V - 24V
|- Rated Torque: up to 95 gf-cm(9.31 mNm)

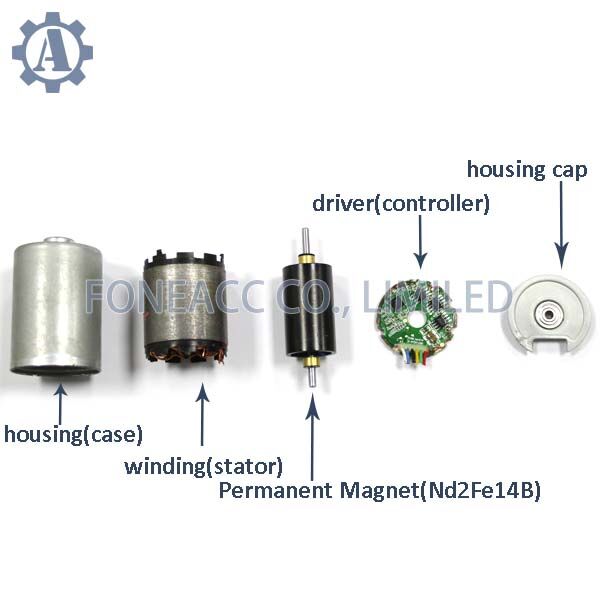

|- Rotor: Inner rotor with Neodymium(Nd2Fe14B) strong magnet
|- Motor Structure: 3 phases, 9 slots, 6 poles, 3 hall sensors
|- Driver(Optional): built-in driver PCB with MCU
|- Construction: Permanent Magnet
|- Commutation: Brushless-PWM drive
|- Manufacturer: Foneacc Motor

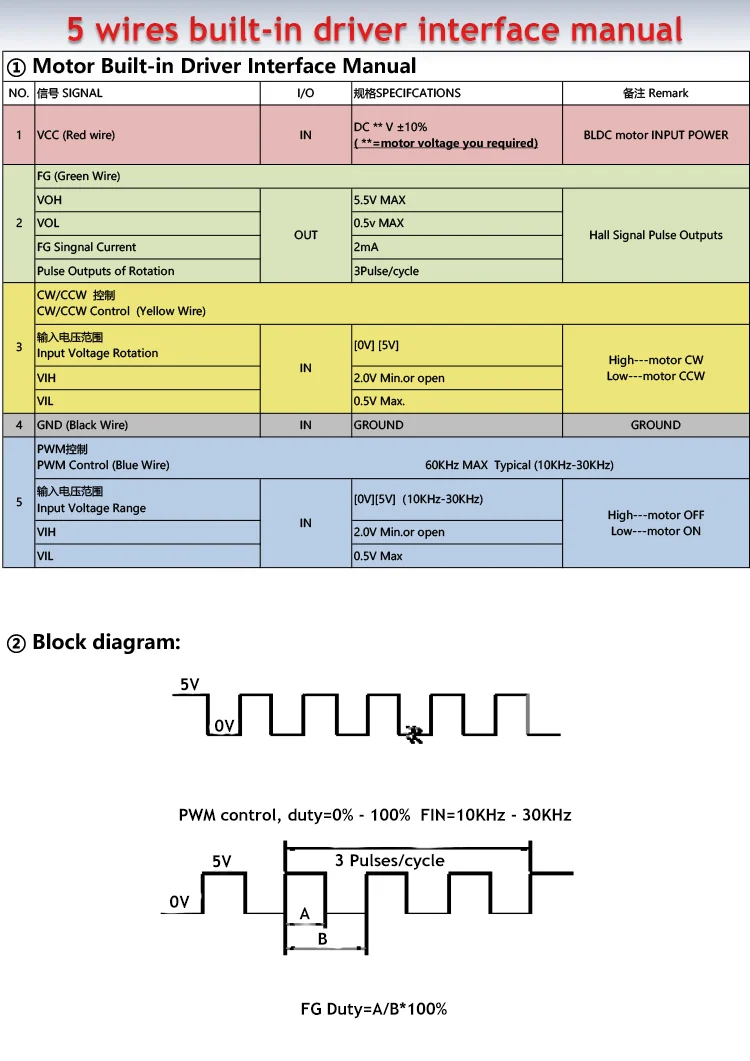

|- Built-in driver (built-in driver controller with hall sensor)
|- PWM pulse wide speed range
|- Clockwise/counter-clockwise rotation
|- FG speed feedback signal
|- Low EMC |- Low noise
|- Long lifespan: up to 20000hrs
|- Over-current protection |- Over-voltage protection |- Under-voltage protection
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
BL2832I brushless dc motor data examples:
| Model | Voltage | No load | At maximum efficiency | Stall | |||||||||
| Range | Rated | Speed | Current | Speed | Current | Torque | P.out | Eff. | Torque | Current | |||
| V | R/m | A | R/m | A | mN.m | gf.cm | W | % | mN.m | gf.cm | A | ||
| BL2832I-V1 | 5 - 12 | 6 | 4,200 | 0.165 | 3,384 | 0.684 | 6.98 | 71.19 | 2.47 | 60.3 | 35.88 | 366 | 2.84 |
| BL2832I-V2 | 8 - 12 | 9 | 9,979 | 0.377 | 8,071 | 1.595 | 12.61 | 128.58 | 10.65 | 74.2 | 65.88 | 672 | 6.75 |
| BL2832I-V3 | 8 - 15 | 12 | 6,300 | 0.121 | 5,318 | 0.655 | 9.28 | 94.66 | 5.17 | 65.8 | 59.51 | 607 | 3.55 |
| BL2832I-V4 | 8 - 26 | 24 | 13,220 | 0.108 | 11,564 | 0.754 | 10.35 | 105.59 | 12.54 | 69.3 | 82.55 | 842 | 5.26 |
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

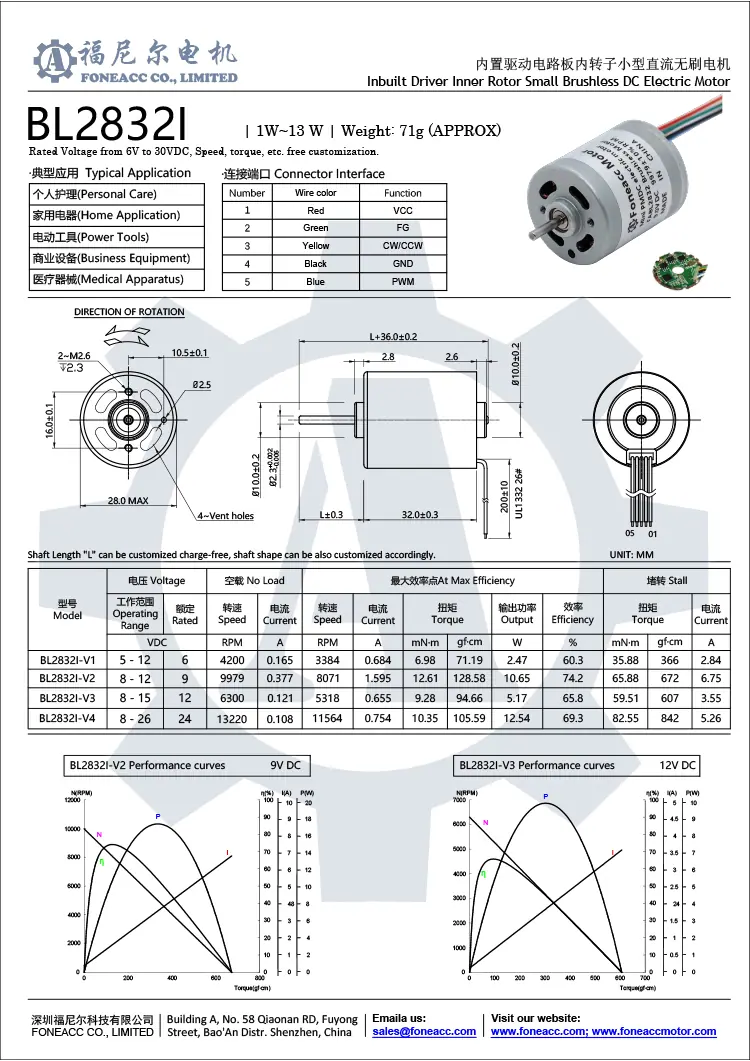

Dimensions and performance curves of BL2832I brushless dc motor for reference:
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Download BL2832I brushless DC motor datasheet for clear view:
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
