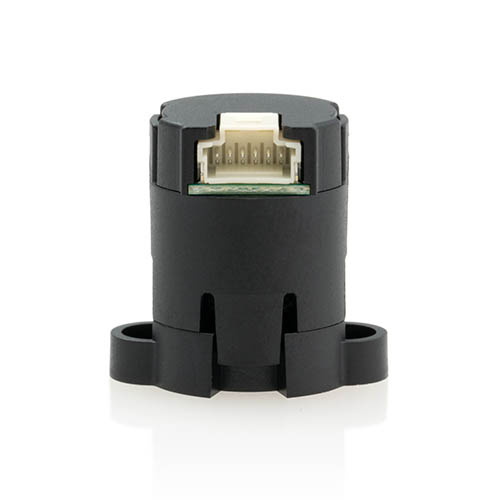

Optical encoder
Optical encoder for dc gear motors
Item No.: Optical encoder
1. Wide resolution range, standard 100 CPR output, also OK to be customized from 96 CPR to 1024 CPR；
2. Single 5V power supply, no signal adjustment required, two channels quadrature output;
3. TTL compatible;
4. Count frequency up to 100 kHz.
2. Single 5V power supply, no signal adjustment required, two channels quadrature output;
3. TTL compatible;
4. Count frequency up to 100 kHz.
Description
Optical Encoder key features:
1. Wide resolution range, standard 100 CPR output, also OK to be customized from 96 CPR to 1024 CPR；
2. Single 5V power supply, no signal adjustment required, two channels quadrature output;
3. TTL compatible;
4. Count frequency up to 100 kHz.
5. Operation temperature: -40°C to +85°C.

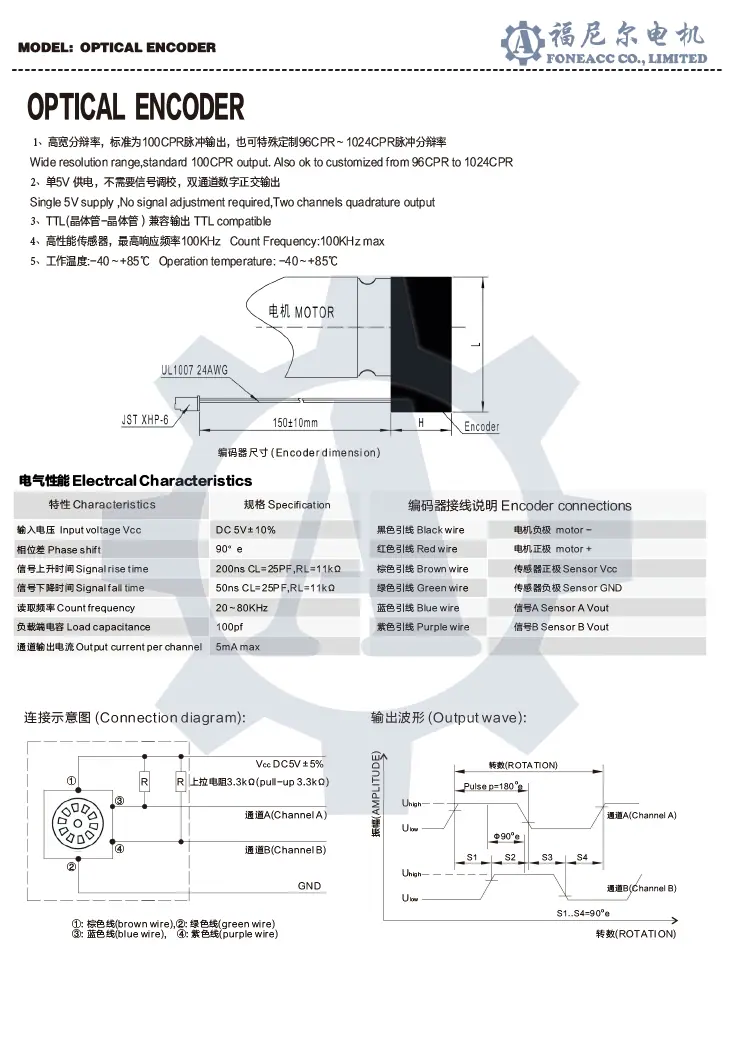

See detailed specs as below:

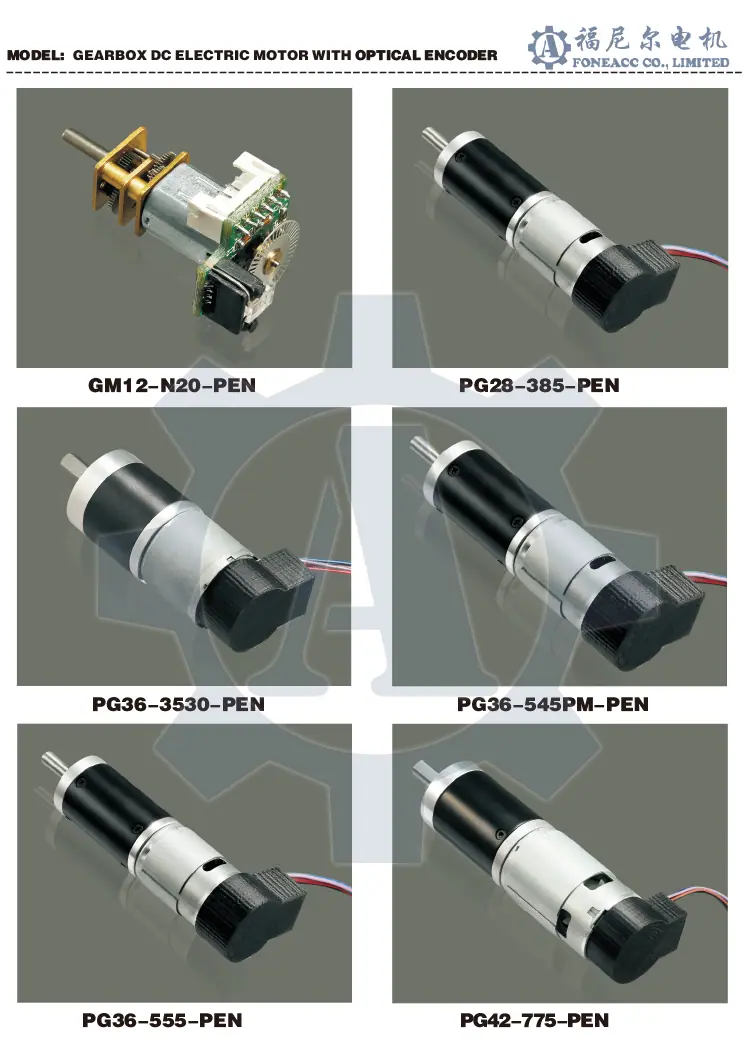

Some examples of our optical encoder with small dc gear motors:
