Φ 28 mm inrunner bldc motor with driver

FABL2847, 28 mm small inner rotor brushless dc electric motor

Item No.: FABL2847
| - Shell Stator Size : Φ28* L 47 mm;
| - Rated Output Power: 5W - 30W;
| - Rated Voltage: DC 6V - 24V;
| - Rated Torque: up to 185 gf-cm;
| - Shaft : Φ2.3mm, length custom;
| - Driver: built-in driver with 3 hall sensors
| - MOQ: 500 pcs.
  • motor case diameter: 28 mm
  • motor case length: 47 mm
  • motor case shape: round motor shell
  • brush type: brushless
  • motor type: single bldc motor
  • bearing type: bushing/ball bearing
  • manufacturer: FONEACC MOTOR
  • Description

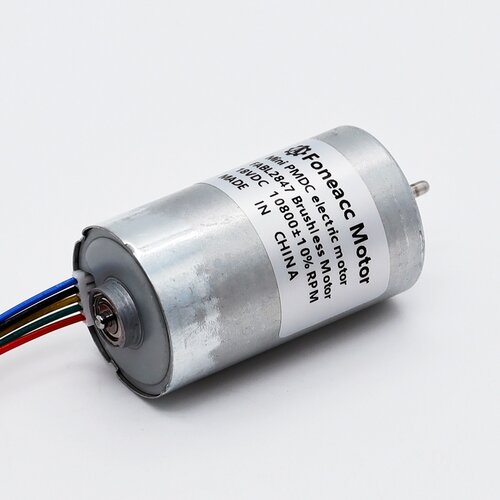

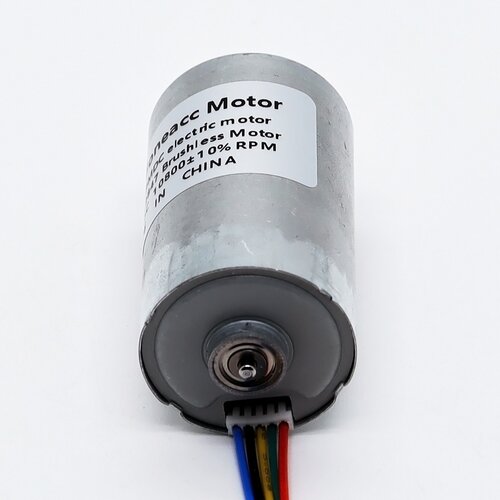

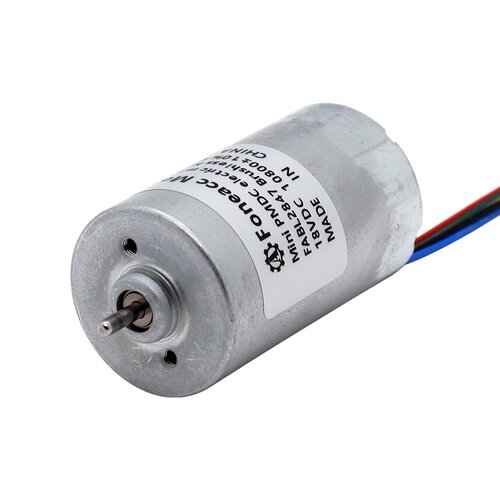

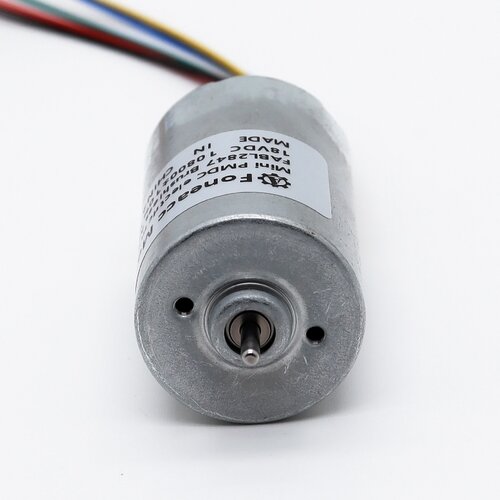

    FABL2847 Φ 28 mm Small Inner Rotor Brushless DC electric motor

    FABL2847 Output Power: 1W~30W Weight: 90g (Approx.)
    Model: FABL2847 ,Size: Φ28.0 mm * 47.0 mm or diameter Φ 1.1 inch * 1.85 inch,
    Key features: Built-in driver(built-in driver controller with hall sensor), PWM pulse wide speed range, Clockwise/counter-clockwise rotation, FG speed feedback signal, Low EMC, Low noise, Long life: 2000~20000hrs, Over-current protection, Over-voltage protection, Under-voltage protection.


    The datasheet of FABL2847 is as below:

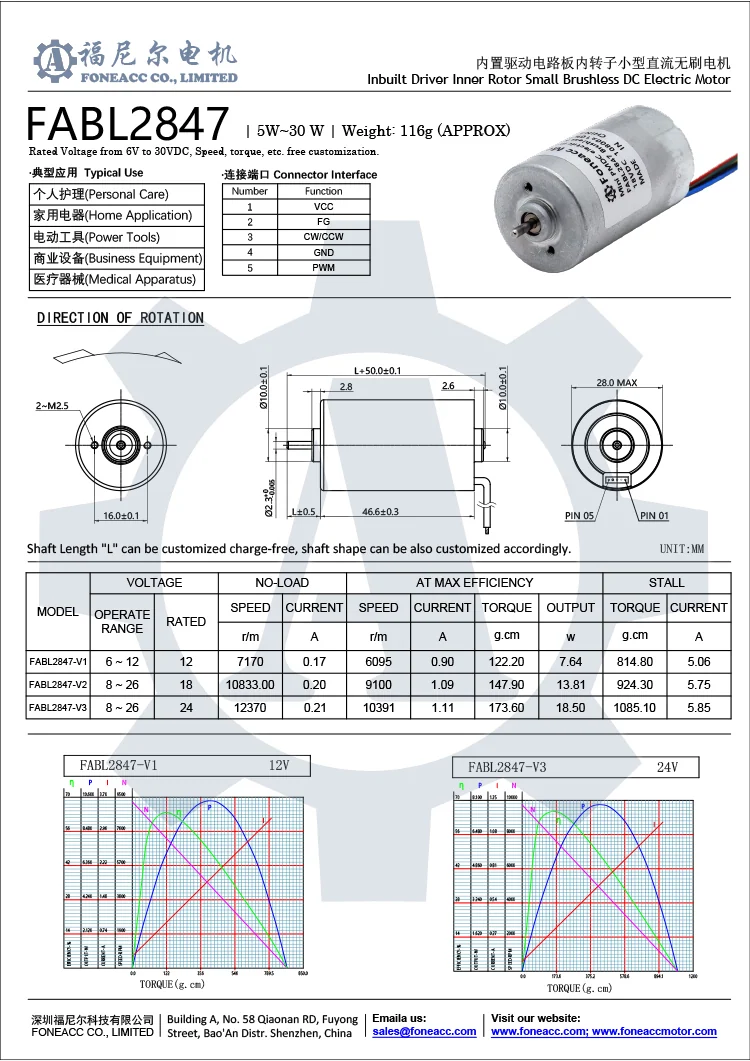

    FABL2847 datasheet.jpg

    5 wires built-in driver interface instruction.webp

    Characteristics: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 2000-20000hrs

    Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power, and shaft extension feature & dimension can be changed to meet the customer-specific requirements.



    A clear view of the small bldc motor data table:

    FABL2847 28 mm small brushless dc electric motor data table
    Model

    FABL2847-S01

    FABL2847-S02

    FABL2847-S03

    Voltage

    (V)

    Operatin

    Range

    6~12 8~26 8~26
    Rated 12 18 24

    No

    Load

    Speed

    (rpm)

    7170 10833 12370

    Current

    (A)

    0.17 0.2 0.21

    Rated

    Load

    Torque

    (mNm)

    11.98 14.5 17.02

    Torque

    (g.cm)

    122.2 147.9 173.6

    Speed

    (rpm)

    6095 9100 10391

    Current

    (A)

    0.903 1.087 1.113

    Output

    P. (W)

    7.64 13.81 18.5
    Stall

    Torque

    (mNm)

    79.9 90.6 106.4

    Torque

    (g.cm)

    814.8 924.3 1085.1

    Current

    (A)

    5.059 5.746 5.852
