Φ 36 mm brushless coreless dc motor

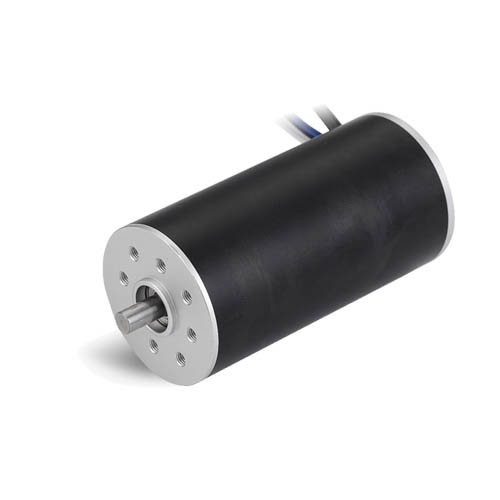

FA3670RB 36 mm micro coreless brushless dc electric motor

Item No.: FA3670RB
3670RB, 36 mm micro coreless brushless dc electric motor | FONEACC, parameters custom service available.
  • motor case diameter: 36 mm
  • motor case length: 70 mm
  • motor case shape: round motor housing
  • brush type: brushless
  • motor type: permanent magnet coreless brushless dc electric motor
  • driveshaft shape: D, O, knurling, screw thread, Customization
  • bearing type: bushing/ball bearing
  • manufacturer: FONEACC MOTOR
  • Description

    The datasheet of 3670RB is as below:

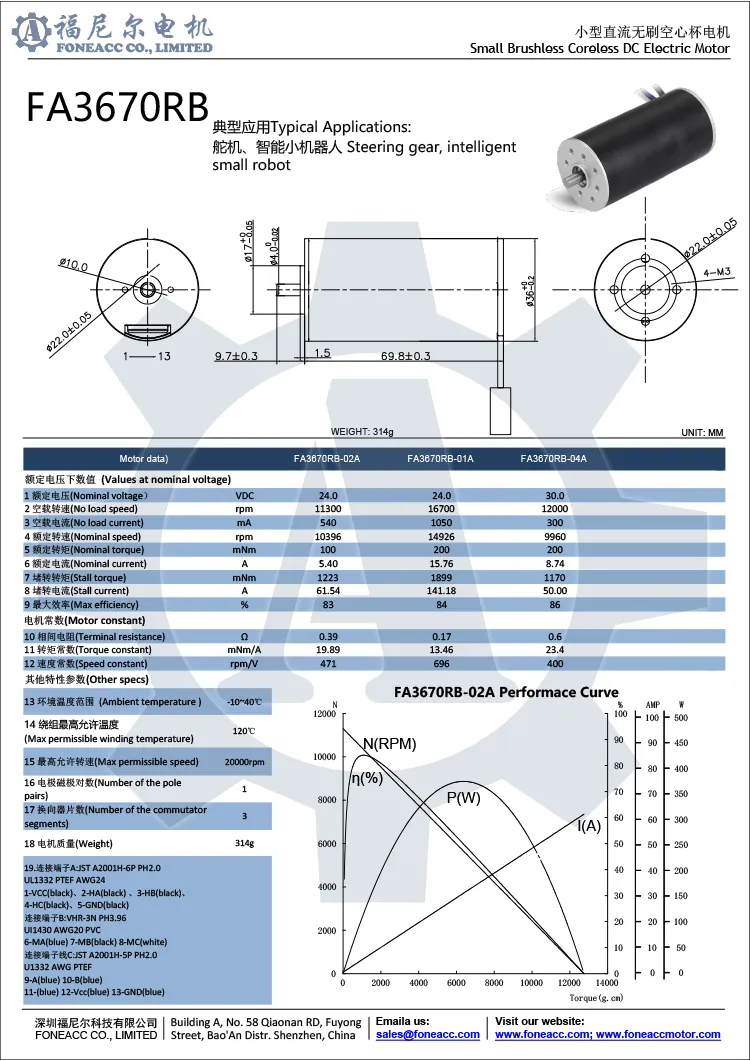

    3670rb 36 mm micro coreless brushless dc electric motor.webp

    Notice: Data in this typical specification sheet are for certain customers. The power voltage, rated torque, speed, current, power, and driveshaft extension can be customized to meet customer-specific requirements.



    Tables for clear view:

    3670rb 36 mm micro coreless brushless dc electric motor data table
    Motor data)   3670RB-02A 3670RB-01A 3670RB-04A
    (Nominal  voltage                   VDC 24.0 24.0 30.0
    (No load speed) rpm 11300 16700 12000
    (No load current) mA 540 1050 300
    (Nominal  speed) rpm 10396 14926 9960
    (Nominal torque) mNm 100 200 200
    (Nominal  current) A 5.40 15.76 8.74
    (Stall torque) mNm 1223 1899 1170
    (Stall current) A 61.54 141.18 50.00
    (Max efficiency) % 83 84 86
    10  (Terminal resistance) Ω 0.39 0.17 0.6
    11  (Torque constant) mNm/A 19.89 13.46 23.4
    12  (Speed constant) rpm/V 471 696 400
    (Other specs)
    13  (Ambient temperature ) -10~40 °C
    14 (Max permissible winding temperature) 120 °C
    15  (Max permissible speed) 20000rpm
    16  (Number of the pole pairs) 1
    17  (Number of the commutator  segments) 3
    18  (Weight) 314g
    19.A:
    JST A2001H-6P PH2.0
    UL1332 PTEF AWG24
    1-VCC(black)

    2-HA(black)
    3-HB(black)
    4-HC(black)
    5-GND(black)
    B:VHR-3N PH3.96
    UI1430 AWG20 PVC
    6-MA(blue)
    7-MB(black) 8-MC(white)

    C:JST A2001H-5P PH2.0
    U1332 AWG PTEF
    9-A(blue)
    10-B(blue)
    11-(blue)
    12-Vcc(blue)
    13-GND(blue)
