Ø 16 mm

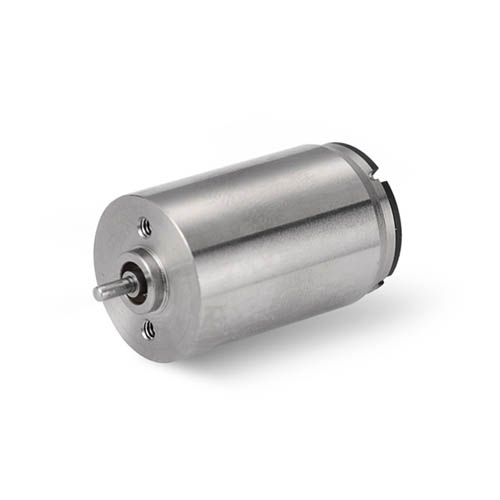

FA1625R 16 mm micro coreless brush dc electric motor

Item No.: FA1625R
| - Shell Stator Size : Ø16* L 25 mm;
| - Rated Output Power: 0.1W - 6W;
| - Rated Voltage: DC 3V - 24V;
| - Rated Torque: up to 21 gf-cm;
| - Shaft : Ø1.5mm, length custom;
| - Structure: permanent magnet coreless winding
| - MOQ: 500 pcs.
  • motor case diameter: 16 mm
  • motor case length: 25 mm
  • motor case shape: round motor housing
  • brush type: carbon brush/metal brush
  • motor type: permanent magnet coreless brush dc electric motor
  • driveshaft shape: D, O, knurling, screw thread, Customization
  • bearing type: bushing/ball bearing
  • manufacturer: FONEACC MOTOR
  • Description

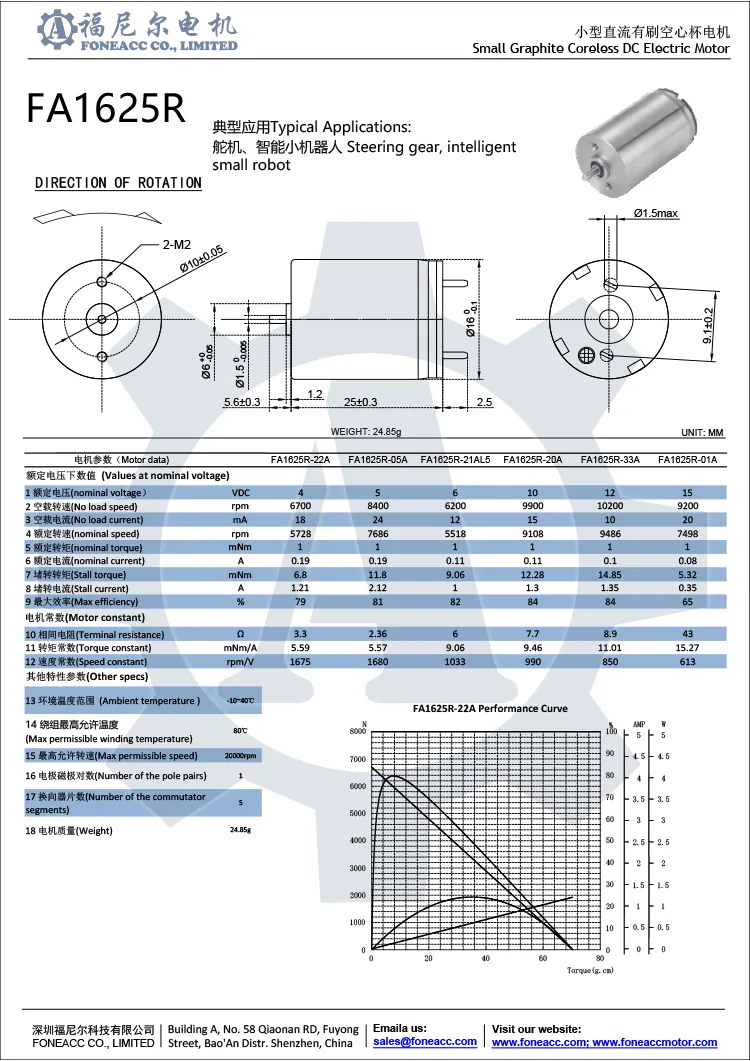

    The datasheet of 1625R is as below:

    1625r 16 mm micro coreless brush dc electric motor.webp

    Notice: Data in this typical specification sheet are for certain customers. The power voltage, rated torque, speed, current, power, and driveshaft extension can be customized to meet customer-specific requirements.


    Tables for clear view:

    1625R 16 mm coreless brushed dc electric motor data table
    Motor data)   1625R-22A 1625R-05A 1625R-21AL5 1625R-20A 1625R-33A 1625R-01A
    (Values at nominal voltage)
    (Nominal  voltage                   VDC 4 5 6 10 12 15
    (No load speed) rpm 6700 8400 6200 9900 10200 9200
    (No load current) mA 18 24 12 15 10 20
    (Nominal  speed) rpm 5728 7686 5518 9108 9486 7498
    (Nominal torque) mNm 1 1 1 1 1 1
    (Nominal  current) A 0.19 0.19 0.11 0.11 0.1 0.08
    (Stall torque) mNm 6.8 11.8 9.06 12.28 14.85 5.32
    (Stall current) A 1.21 2.12 1 1.3 1.35 0.35
    (Max efficiency) % 79 81 82 84 84 65
    (Motor constant)
    10  (Terminal resistance) Ω 3.3 2.36 6 7.7 8.9 43
    11  (Torque constant) mNm/A 5.59 5.57 9.06 9.46 11.01 15.27
    12  (Speed constant) rpm/V 1675 1680 1033 990 850 613
    (Other specs)
    13  (Ambient temperature ) -10~40 °C
    14 (Max permissible winding temperature) 80 °C
    15  (Max permissible speed) 20000rpm
    16  (Number of the pole pairs) 1
    17  (Number of the commutator  segments) 5
    18  (Weight) 24.85g

    Micro coreless brush dc electric motor applications

    Sweeping robot, CCTV camera, electric lock, electrical curtain, printer, atm, copiers and scanners, vending machines, hand blenders, mixers, coffee machines, fryers, projectors, grinders, polishers, trimmers, amusement machine, financial machine, peristaltic pump, medical apparatus and instruments, automotive, communications equipment, smart home, intelligent security, household appliances, electric kitchen equipment, machinery and electronics, and other high-end transmission structures
