OD Ø 10mm spur gear motor

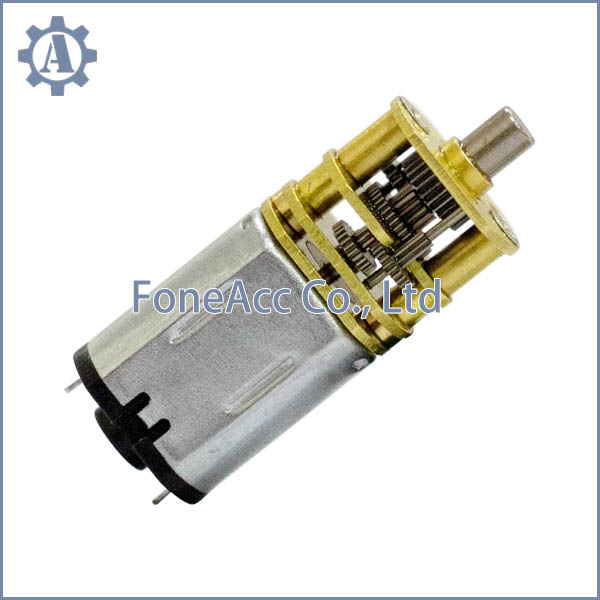

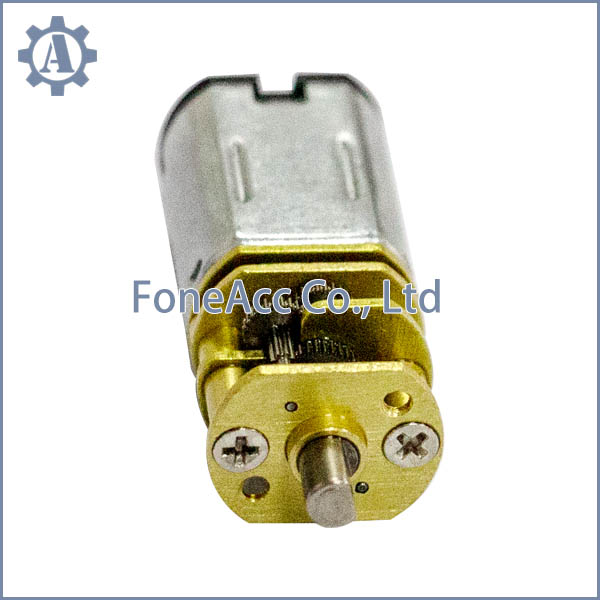

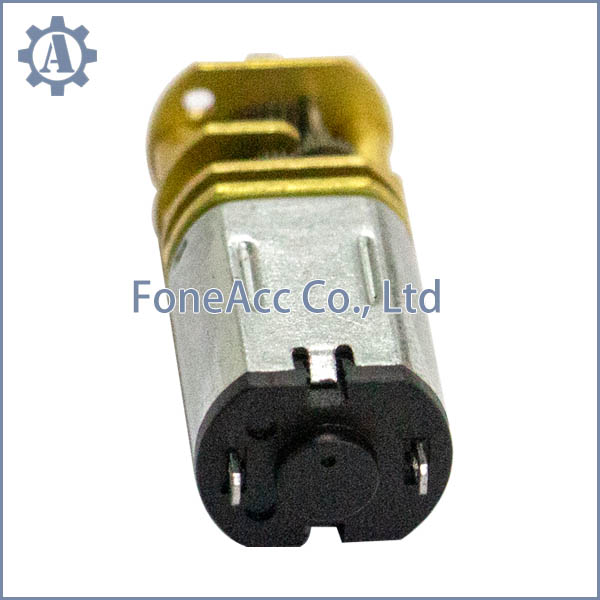

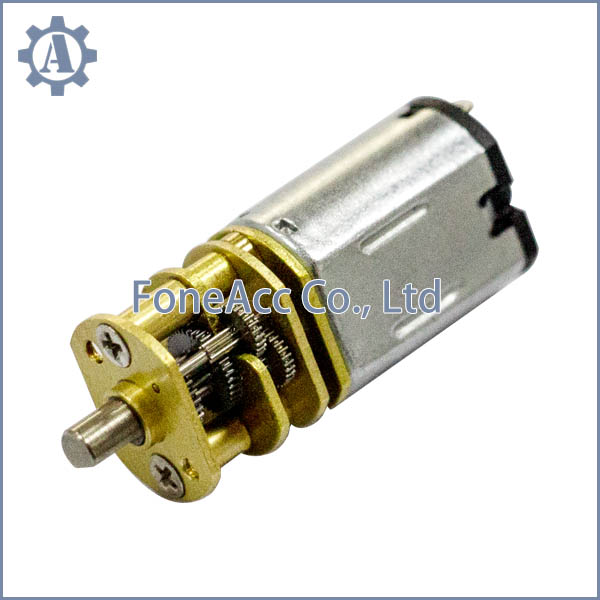

GM10-M10VA 10mm metal spur gear dc motor small dc motor

Item No.: GM10-M10VA, GM10-M10
GM10-M10VA 10mm metal spur gear dc motor small dc motor
Key specifications as below:
rated current [mA]: 180
nominal voltage [V DC]: 4.5
rated torque [Nm]: 0.044
starting current [mA]: 350
starting torque [Nm]: 0.088
NO-load-speed [rpm]: 23000
Description
GM10-M10VA 10mm metal spur gear dc motor small dc motor

Key specifications as below:
rated current [mA]: 180
nominal voltage [V DC]: 4.5
rated torque [Nm]: 0.044
starting current [mA]: 350
starting torque [Nm]: 0.088
NO-load-speed [rpm]: 23000
weight [g]:  about 3g
outside shaft length [mm]: 4
shaft end play [mm]: 0.05...0.30
screw size: M1.6x0.35
dia of shaft [mm]: Ø3x2.5

The typical application for this small metal spur gear dc motor is smart lock drive.


Specified details of this Small Gear dc motor GM10-M10VA:

Item Unit Specification
Rated voltage VDC 4.5
Gear Ratio   1/250
Rotation   CW&CCW
Motor Position   All position in horizontal
Temperature °C 0~30
Humidity % 30~95
• Performance of Small DC Motor FF-M10VA
No-load Speed rpm 23.000±10%
No-load Current mA 55 (max.)
Stall Current mA 350 (max.)
Stall Torque g.cm 4.5
• Performance of Small Gear dc motor GM10-M10VA
Output Speed rpm 90±10%
No-load Current mA 65 (max.)
Stall Current mA 350 (max.)
Stall Torque g.cm Instant allows torque 900
Rated Torque g.cm 450
Rated Current mA 180 (max.)
Noise dB 45
• The Dimension of Small Gear dc motor GM10-M10VA
The Outside Shaft Length mm 4
Shaft End Play mm 0.05-0.30
Screw Size   M1.6*0.35
Dia of Shaft mm Ø3*2.5

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
