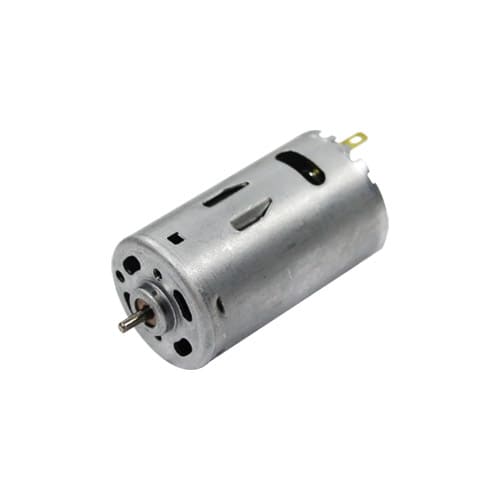

Φ 28 mm brushed micro DC electric motor

FARS-390 28 mm diameter micro brush dc electric motor

Item No.: FARS-390
RS-390, 28 mm micro brush dc electric motor | FONEACC MOTOR, parameters custom service available.
  • motor case diameter: 27.7 mm
  • motor case length: 47 mm
  • motor case shape: round motor housing
  • brush type: carbon brush/metal brush
  • motor type: single brush permanent magnet dc electric motor
  • driveshaft shape: D, O, knurling, screw thread, Customization
  • bearing type: bushing/ball bearing
  • manufacturer: FONEACC MOTOR
  • Description

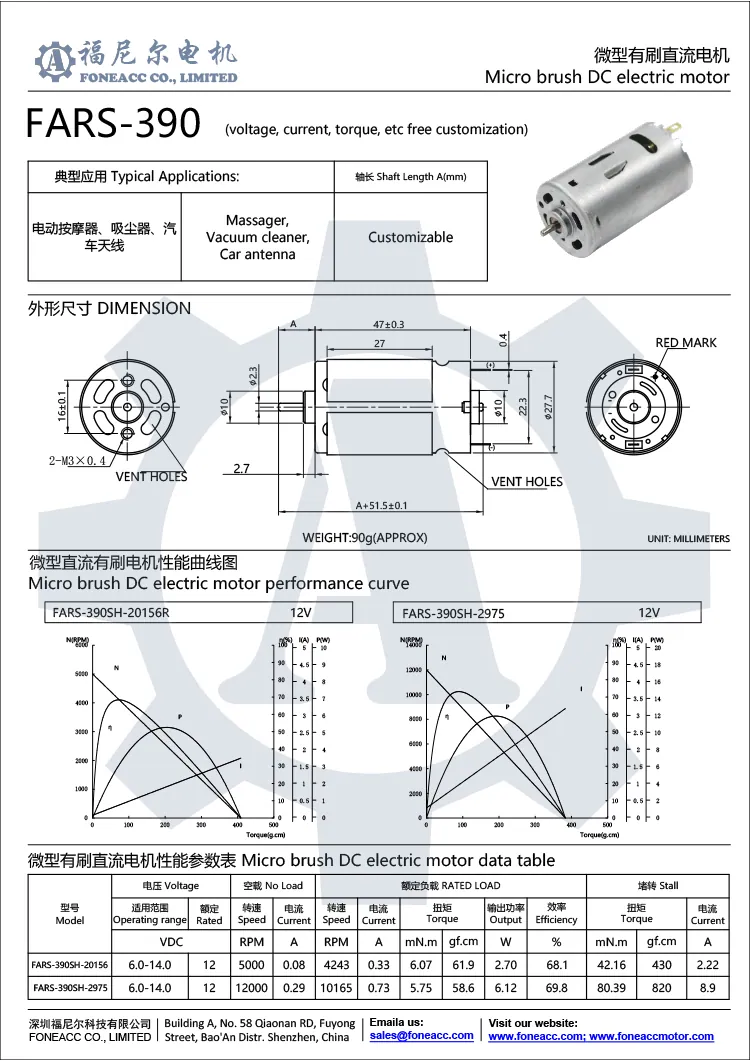

    The datasheet of RS-390 micro brush dc electric motor is as below:

    rs390 28 mm micro brush dc electric motor.webp

    Notice: Data in this typical specification sheet are for certain customers. The power voltage, rated torque, speed, current, power, and driveshaft extension can be customized to meet customer-specific requirements.



    Tables for clear view:

    RS-390 28 mm micro brush dc electric motor data table
    Model Volta No Load RATED LOAD Stall
    Operating range Rated Speed Current Speed Current Torque Output Efficiency Torque Current
    VDC RPM A RPM A mN.m gf.cm W % mN.m gf.cm A
    RS-390SH-20156R 6.0-14.0 12 5000 0.08 4243 0.33 6.07 61.9 2.70 68.1 42.16 430 2.22
    RS-390SH-2975 6.0-14.0 12 12000 0.29 10165 0.73 5.75 58.6 6.12 69.8 80.39 820 8.9


    Micro brush dc electric motor applications:

    Sweeping robot, CCTV camera, electric lock, electrical curtain, printer, atm, copiers and scanners, vending machines, hand blenders, mixers, coffee machines, fryers, projectors, grinders, polishers, trimmers, amusement machine, financial machine, peristaltic pump, medical apparatus and instruments, automotive, communications equipment, smart home, intelligent security, household appliances, electric kitchen equipment, machinery and electronics, and other high-end transmission structures



    Why choose us:

    ***  Experienced manufacturer  ***
    We have more than 15 years of experience in producing and exporting dc gear motors to customers all over the world.

    ***  Motor custom  ***
    We accept OEM or ODM orders.

    ***  Samples processing  ***
    We have a sample workshop specialized in processing samples.
    The lead time of samples is usually about 7days, some hot-selling models are about 15 days.

    ***  Capability  ***
    Our monthly capacity is more than 200000pcs.
    We have many R&D engineers for professional advice and solutions.

    ***  Fast delivery  ***
    According to different quantities and DC motor/gear motor models, 15 to 40 days fast delivery time,
    even during the COVID19 pandemic, we have a 99% on-time delivery rate.

    ***  Worry-free quality  ***
    Our products are widely satisfied among customers all over the world with reasonable price and good quality.
    Our warranty period is one year. And our comprehensive non-performing rate is less than 1‰. For these defective dc motors, we will provide replenishment in the next batch of orders.
