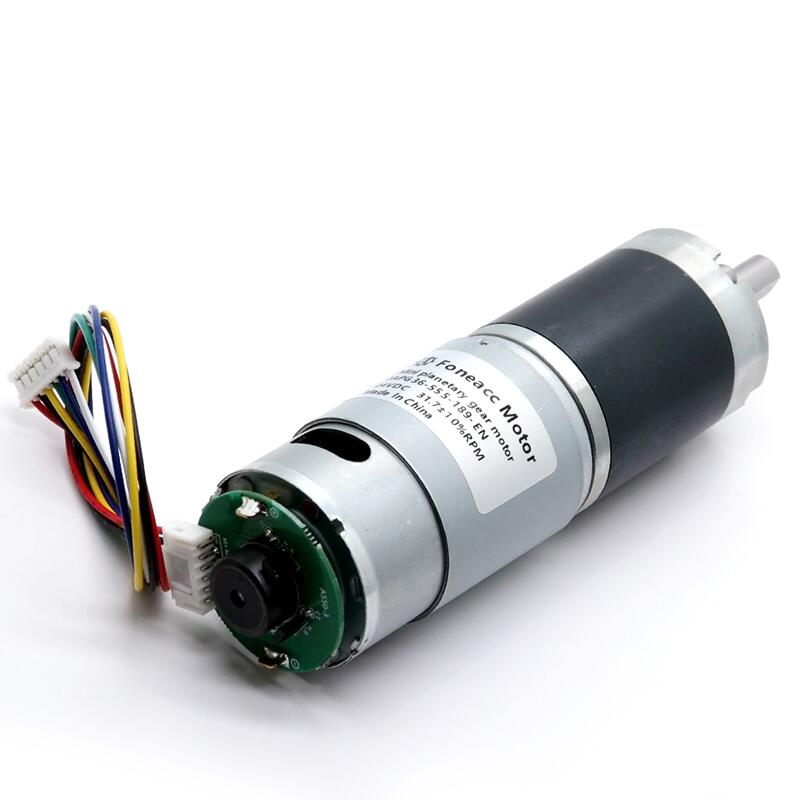

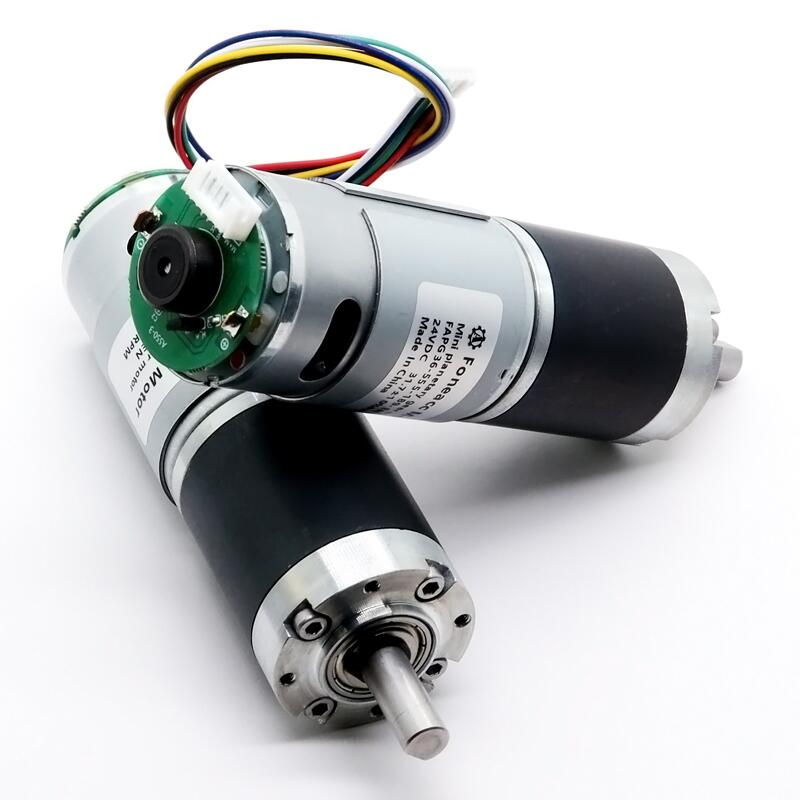

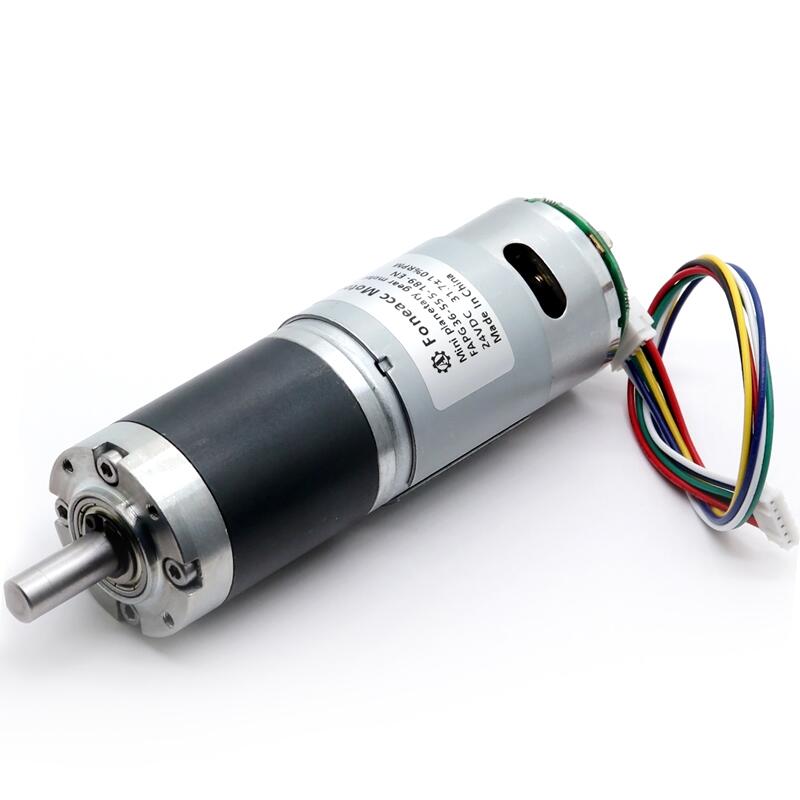

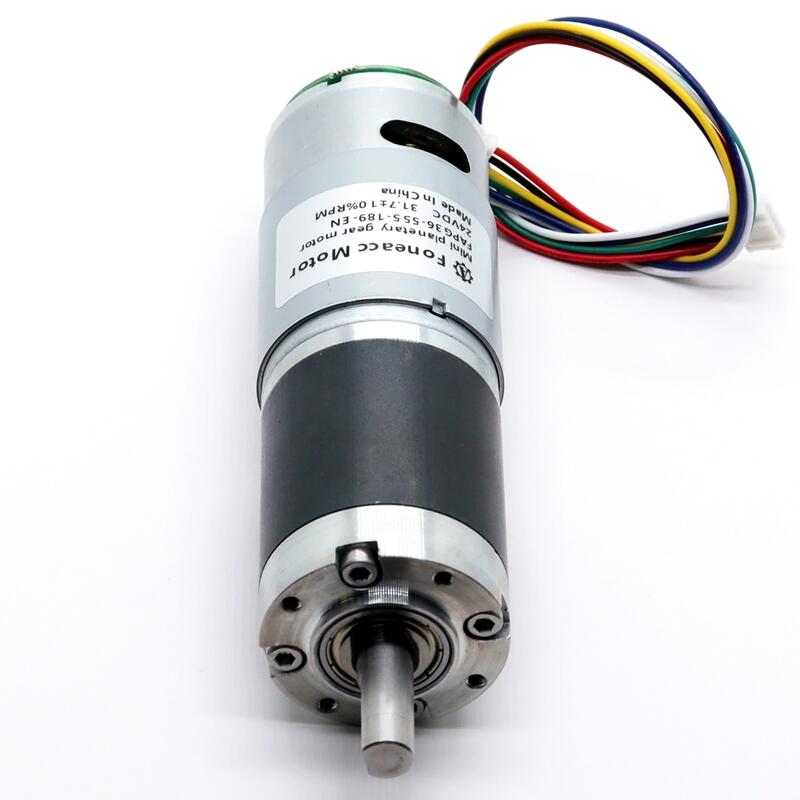

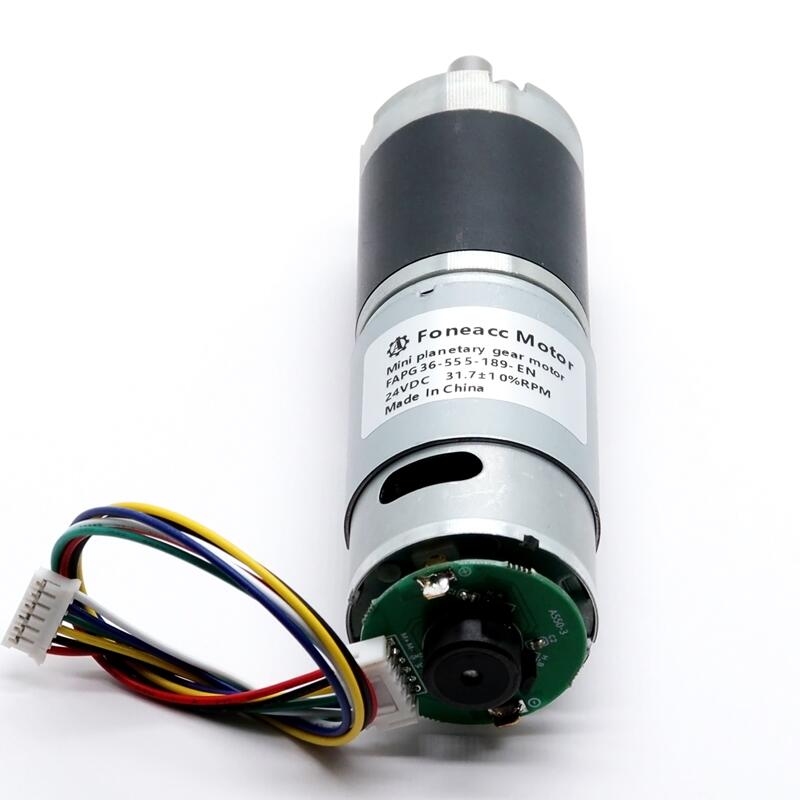

FAPG36-555-EN, OD 36mm planetary geared pmdc motor with magnetic encoder

Item No.: FAPG36-555-EN

1.gear ratio: 3.7-3736;
2.Speed:10-1500 RPM;
3.Voltage: 3V to 24V DC;
4.Output torque: from 5kg.cm~150kg.cm;
5.Planetary gear structure with concentric driveshaft;
6.Large torque and low noise;
7.Encoder: Magnetic Encoder 12 PPR;

Get the Best Price

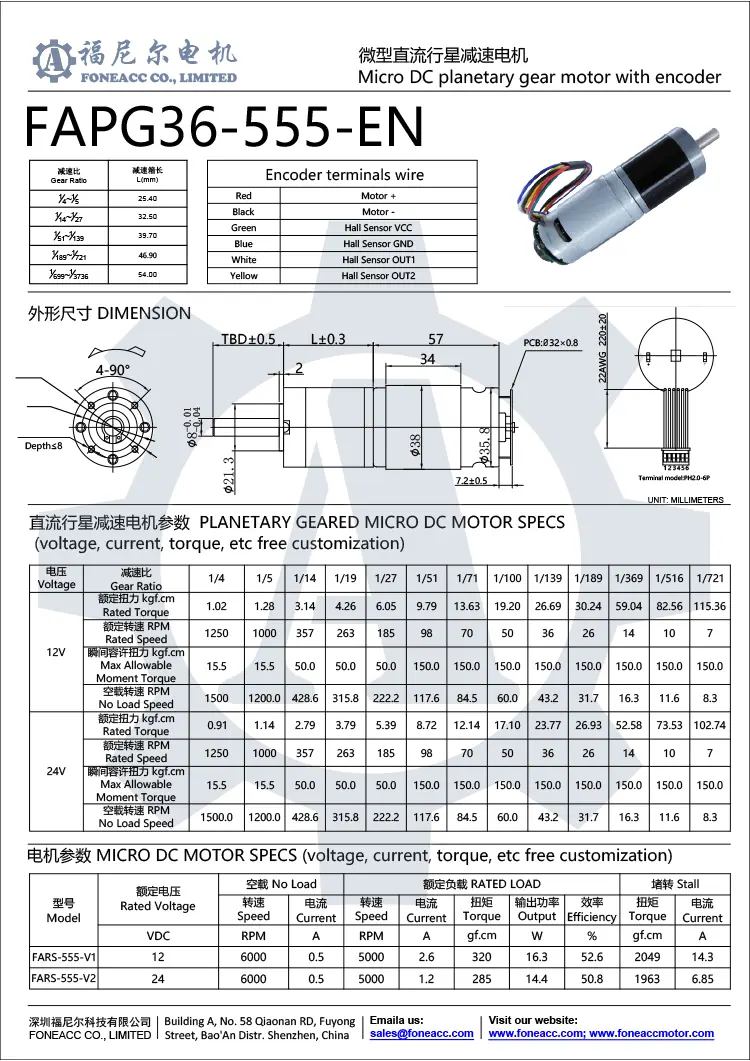

FAPG36-555-EN datasheet

Description

PG36-555-EN 36mm dc planetary gear motor with magnetic encoder:

1.gear ratio: 3.7-3736;
2.Speed:10-1500 RPM;
3.Voltage: 3V to 24V DC;
4.Output torque: from 5kg.cm~150kg.cm;
5.Planetary gear structure with parallel driveshaft;
6.Large torque and low noise;
7.Encoder: Magnetic Encoder 12 PPR;
8.Commutation: Carbon/Graphite brushed PMDC motor RS-555;
9. Construction: Permanent Magnet

Gear box specifications:

Number of stages	1 stage reduction	2 stages reduction	3 stages reduction	4 stages reduction	5 stages reduction
Reduction Ratio	3.7, 5.2	13.7, 19.2, 26.9	50.9, 71.2, 99.5, 139	188, 264, 369, 516, 721	699, 977, 1367, 1911, 2672, 3736
Gearbox Length "L" mm	25.1	32.3	38.5	44.7	50.9
Max running torque	10 kgf.cm	20 kgf.cm	50 kgf.cm	50 kgf.cm	50 kgf.cm
Max breaking torque	30 kgf.cm	60 kgf.cm	150 kgf.cm	150 kgf.cm	150 kgf.cm
Gear Efficiency	90%	81%	73%	65%	59%

Single DC motor specifications:

Motor Model	Rated Voltage	No load		Load torque				Stall torque


		Current	Speed	Current	Speed	Torque	Output	Torque	Current


	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
RS-555123000	12	≤140	3000	≤800	2200	150	3.3	600	3000
RS-555124500	12	≤220	4500	≤1200	3300	220	7.2	880	4800
RS-555126000	12	≤350	6000	≤2000	4500	300	13.5	1200	6000
RS-555243000	24	≤70	3000	≤400	2200	150	3.3	600	1600
RS-555244500	24	≤110	4500	≤600	3300	220	7.2	880	3000
RS-555246000	24	≤180	6000	≤1000	4500	300	13.5	1200	4000

Dc motor with planetary gear reducer assembly data:

Gear Motor Model	Rated voltage	No Load		Max Efficiency Load				Stall
	Rated voltage	Current	Speed	Current	Speed	Torque	P.out	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
FA-PG36-555-06V515K	6	0.84	12.3	2.58	9.2	56.68	5.35	225.84	7.8
FA-PG36-555-12V51K	12	0.31	96.1	1.61	80.2	11.64	9.58	70.26	8.15
FA-PG36-555-12V264K	12	0.26	17.1	1.21	13.8	34.48	4.89	180.7	5.22
FA-PG36-555-12V515K	12	0.22	10.1	0.87	7.7	45.85	3.62	193.22	2.99
FA-PG36-555-24V189K	24	1.2	79.3	5.83	65.7	66.3	44.7	377.16	20.01

pg36-555-en planetary gearbox dc electric motor with encoder

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.

Magnetic encoder specs:

magnetic encoder.webp

Some examples of small gear motors with magnetic encoder, all of our brush dc gear motors are compatible with encoders.

small gear motors taht with magnetic encoder.webp
